Icon K63004 7"-9" Stage 2 Coilover Conversion System for Ford F250/F350 2008-2010

Icon vehicle dynamics is an industry leader when it comes to ford super duty performance. Engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Icon 7"-9" stage 2 coilover conversion system for the 08-10 super duty yields enough lift to clear 37" tires while providing excellent ride characteristics across a wide variety of terrain on and off-road.

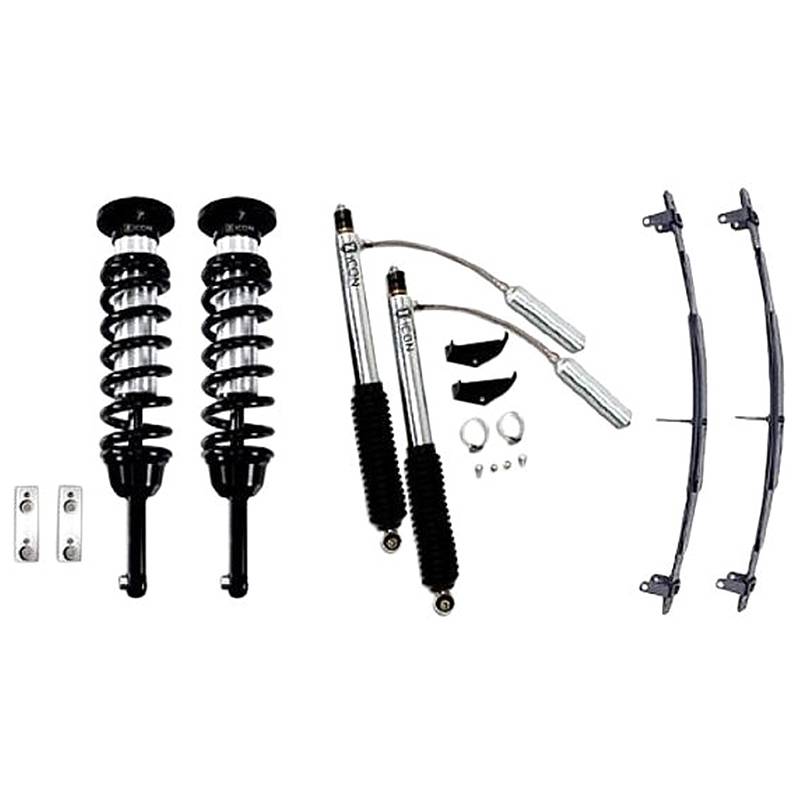

Each component of this suspension system has been specifically engineered to work in union with other Icon parts to extract maximum performance out of the vehicle. Stage 2 system is comprised of adjustable 2.5" diameter, 7"-9" lift remote reservoir coilover shocks, 2.5" diameter secondary piggyback shocks, Icon bolt in coilover conversion hoops, 4-Link Conversion System, track bar drop bracket, track bar with bearing upgrade, bumpstop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5" piggyback reservoir rear shocks.

Features

• Adjustable coilovers allow for adjustments from 7" to 9" in additional ride height
• Front external reservoir delivers excellent heat dissipation
• Dual rate spring for a great ride quality on or off road
• Adjustable, extreme duty track bar can be adjusted on truck
• 4-link conversion for a proper range of motion without any binding that can be caused from factory radius arms
• 2.5" V.S. series secondary shocks in the front for complete dampening control (not pictured)
• 2.5" V.S. series piggyback shocks in the rear to completely complement the front shocks for unrivaled performance
• Bottom 2 leaves of the 5" spring pack are flat to provide a secondary rate preventing harsh bottom outs and smooth transition through the suspension cycle

Specifications

• Max Tire Size: 35" x 12.50"
• Weight: 637 lb
