Icon K53053 Stage 3 0"-3.5" Lifted Suspension Lift Kit for Toyota 4Runner/FJ Cruiser 2003-2009

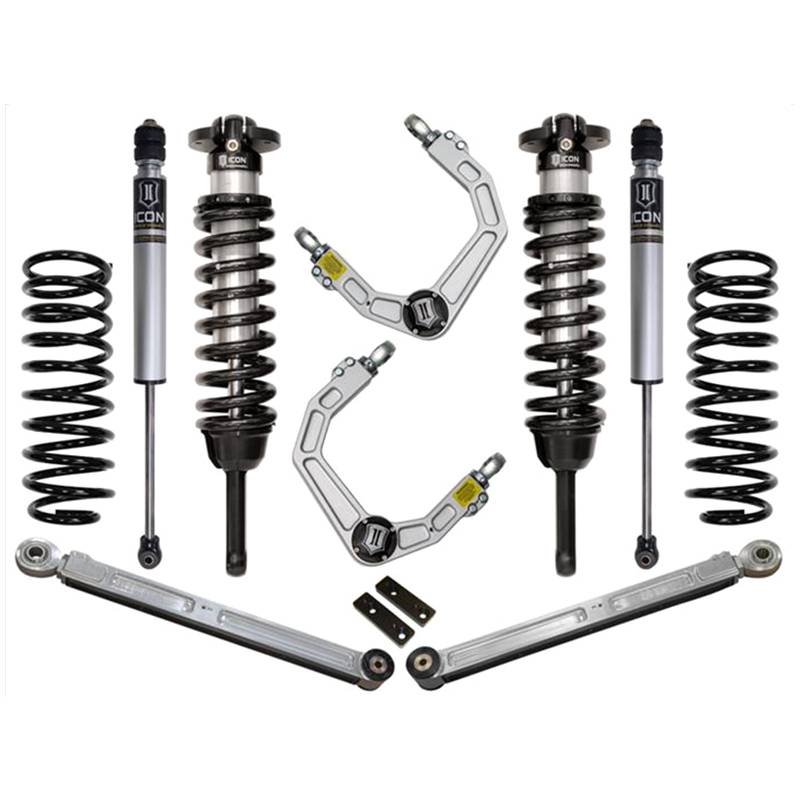

The Stage 3 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser includes the components found in the Stage 2 system along with an Icon Billet Aluminum Rear Lower Link kit. Extended travel Icon 2.5 Series coilover shocks and a billet aluminum Delta Joint upper control arm kit provide a significant upgrade to the 4Runner's front suspension. The rear of the vehicle is improved with our 2" lift coil springs, Icon 2.0 Aluminum Series shocks, and the additional rear lower links. Icon CNC machined 6061 billet aluminum lower links are much stronger than the OE units, can be easily adjusted on the truck for optimum pinion angle, and are protected by a machined nylon skid strip to help slide over rocks without damage to the link's structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

Features

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended travel coilovers matched with Icon UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum series internal reservoir rear shocks with 5/8" shafts

Specifications

• Weight: 121 lb
• Amount of Rise: 0"-3.5"
