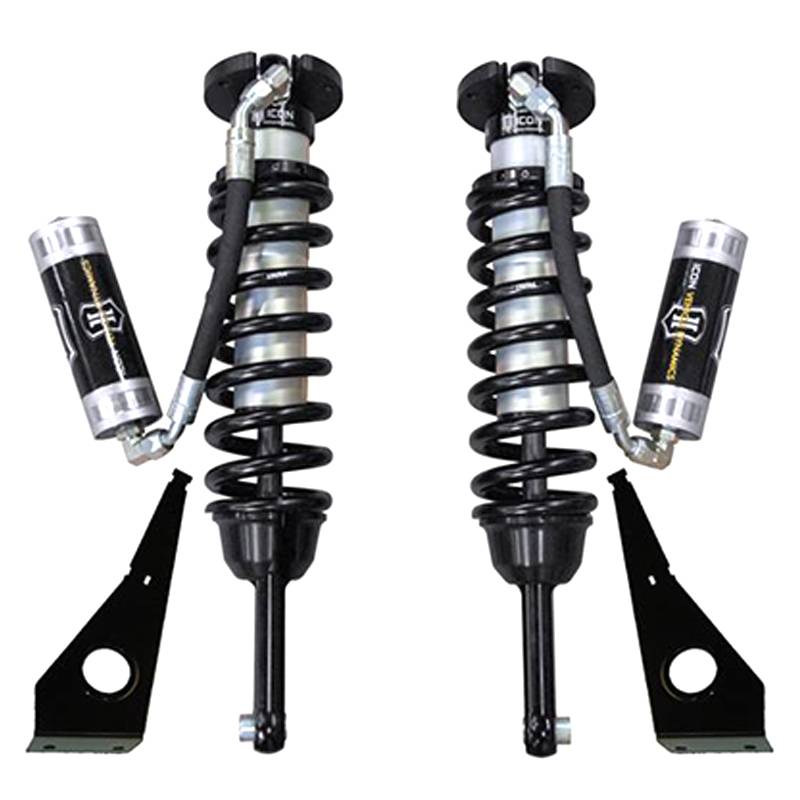

Icon 58740 VS 2.5 Remote Reservoir Front Coilover Shock Kit for Toyota FJ Cruiser/4Runner 2003-2009

These has taken their already perfect performing coil over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coil overs come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.

Features

• Adjustable ride height from 0-3"
• Mounting bracket orients reservoir for optimum tire clearance
• External reservoir ensures maximum cooling
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir
• Race shock piston with flutter stack compression valving
• Kit includes sway bar relocation brackets
• Kit also includes reservoir mounting brackets
• Cad-plated threaded body/extreme weather plating option available
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose length optimized for increased fluid transfer

Specifications

• Amount of Rise: 0"-3"
• Hydraulic/Gas Charged: Gas
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Shock Body Color: Silver
• Shock Body Material: Aluminum
• Spring Style: Pigtail
• Spring Color: Black
