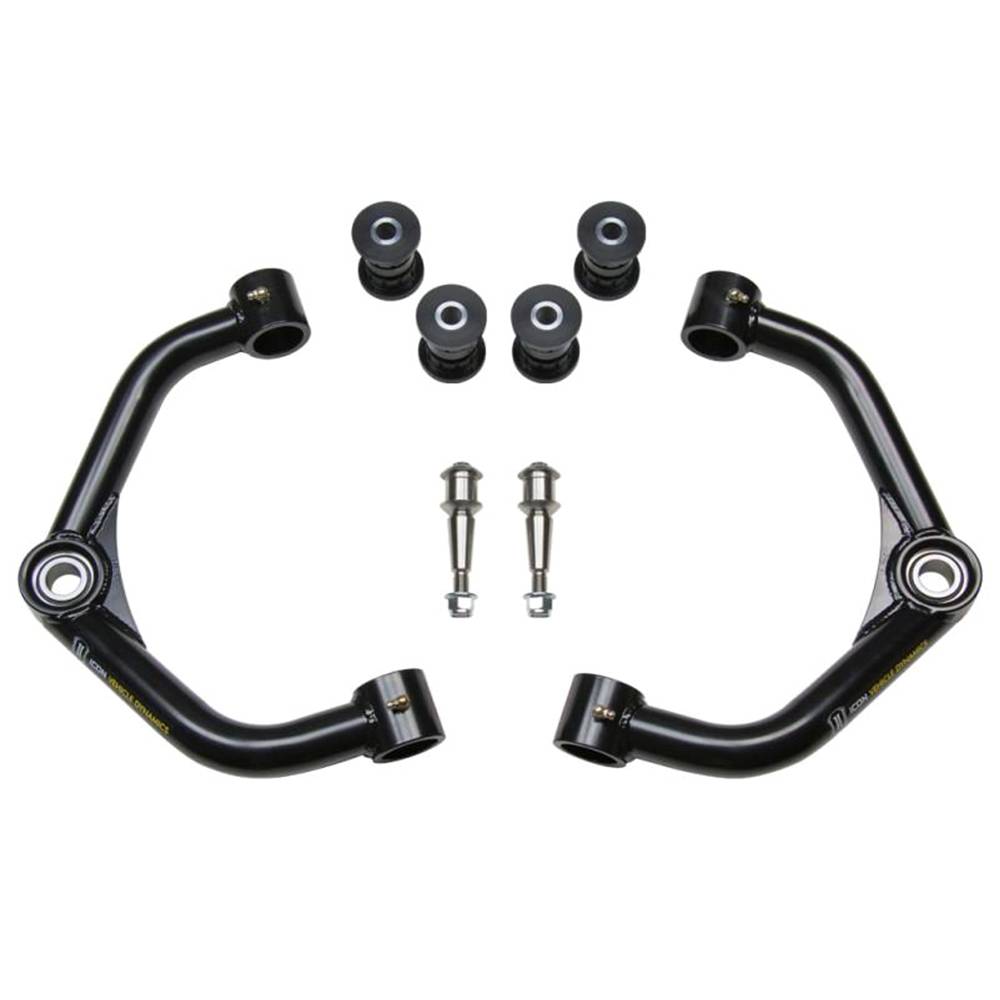

Icon 78500 Uniball Upper Control Arm Kit for Chevy Silverado 2500 HD 2011-2019

Utilizing a tubular uniball upper control arm paired with a custom valved shock package, the 100% bolt on Icon 2.5" performance lift upgrade for the 2011 HD provides Cadillac ride quality with race truck travel numbers. Weak OEM ball joints present problems by limiting suspension travel, especially when using our 2.5" VS series performance coil-over shocks. Using 1" PTFE lined uniballs combined with 17-4 stainless taper pia adapters increases the upper arms misalignment, allowing for smooth and clean wheel travel without worrying about factory ball joint bind.

GM limits the suspension travel significantly and with true performance upgrade you will gain nearly 50% more wheel travel and noticeable ride quality and vehicle control whether on or off road. System truly redefines the way a 3/4 Ton or 1 Ton truck canride and perform like.

Features

• 1026 DOM seamless tubing
• CNC bent tubing
• CNC machined bushing housings and sleeves
• CNC machined uni-ball cup
• Dual stage bushing kit
• 17-4 high grade stainless steel uni-ball adapter pin
• High precision CNC machined pin provides OEM like fitment
• Professionally precision welded
• Fits 2wd and 4wd applications

Specifications

• Color/Finish: Black Semi-Gloss Powder Coat
• Material: Steel

Vehicle Fitment

Technical Files

Installation Instructions
