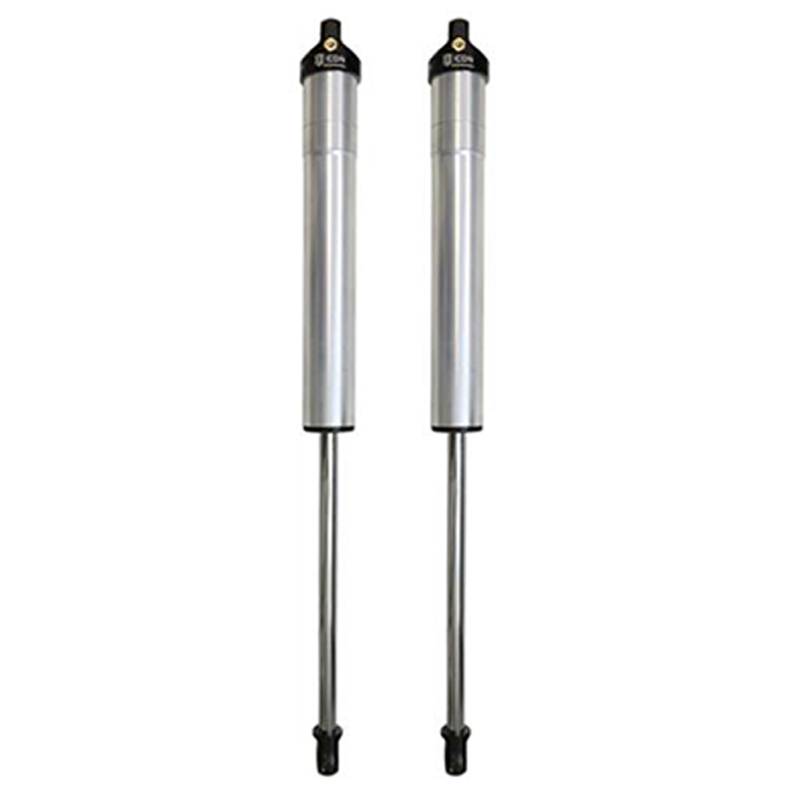

Icon 37601 VS 2.5 Aluminum Series 3"-6" Rear Lifted Internal Shock Absorber for Ford F250/F350 1999-2019

These (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all Icon shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of Icon 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Features

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 100% Rebuildable
• 100% Revalveable
• 100% Rebuildable
• Nitrogen charged monotube design with internal reservoir
• Increase in strength and heat dissipation when compared to Icon V.S. 2.0 Series shocks
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• 6061 aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8" diameter induction hardened, chrome plated shock shaft

Specifications

• Extended Length: 33.580"
• Compressed Length: 20.630"
• Stroke Length: 12.950"
• Lower Mounting: Eyelet
• Reservoir: Yes
• Type Reservoir: Internal
• Amount of Rise: 3"-6"
• Hydraulic/Gas Charged: Gas
