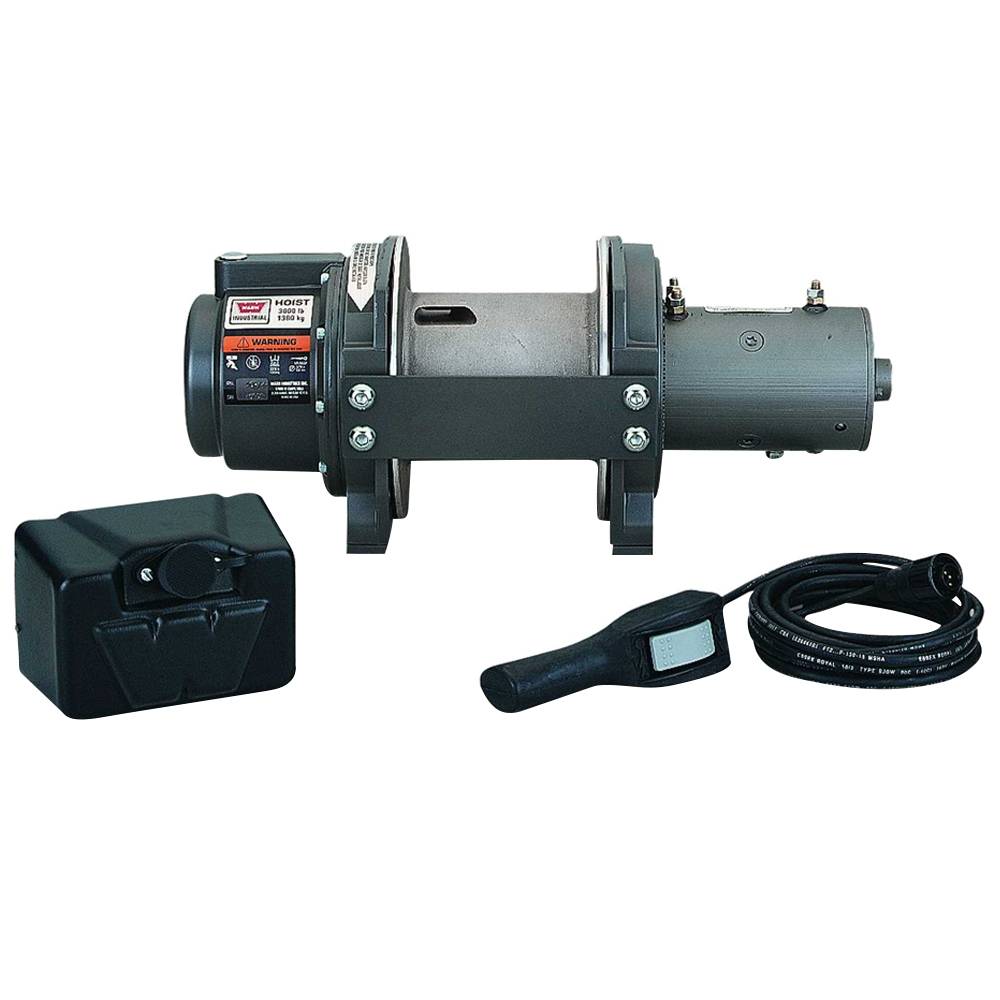

Warn 36945 DC3000 LF Industrial DC Hoist

The DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC3000 hoist is built on Warn robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity..

Features

• Designed to ANSI B30.5 standards
• Weather proof contactor
• Heavy duty remote control
• Static and dynamic braking

Specifications

• Type: Electric
• Recommended Use: Industrial
• Rated Line Pull: 3000 lb
• Motor: 12 volt DC
• Horse Power: 2.5 hp
• Gear Reduction Ratio: 199.1
• Remote Control: Industrial Remote 12 ft Lead
• Size: 21.77 inch x 9.92 inch x 11.79 inch
• Weight: 83 lb

Vehicle Fitment

This part is universal

Technical Files

Installation Instructions
