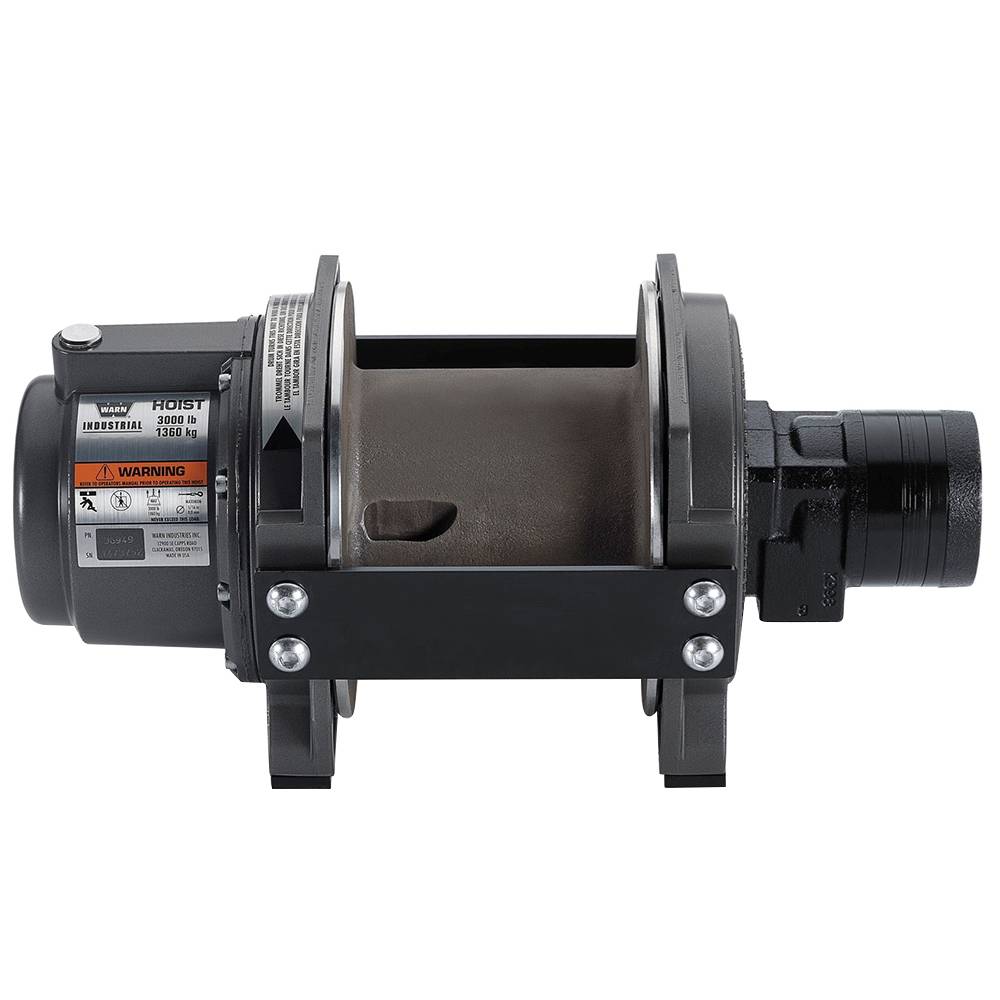

Warn 36949 HY 3000 LF Industrial Hydraulic Hoist

The hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on a large frame with a cast aluminum drum for plenty of wire rope capacity.

Features

• Powerful and efficient hydraulic motor with robust sealing
• Permanent grease lubrication means years of trouble free service
• Durable powder coated finish stands up to the elements and looks great
• Built on a large frame with a cast aluminum drum for plenty of wire rope capacity
• Limited 1 year warranty

Specifications

• Type: Hydraulic
• Recommended Use: Industrial
• Motor Type: Permanent Magnet
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 21:1
• Free Spooling: No
• Brake Type: Automatic Disc
• Mounting Hole Quantity: 8
• Mounting Pattern Length: 8 inch
• Mounting Pattern Width: 4-1/2 inch/ 6-1/2 inch
• Includes Mounting Hardware: No
• Color: Black
• Drum Material: Aluminum
• Max Line Pull/ Line Speed: 3000 pound/ 43 ft per minute

Technical Files

Installation Instructions
