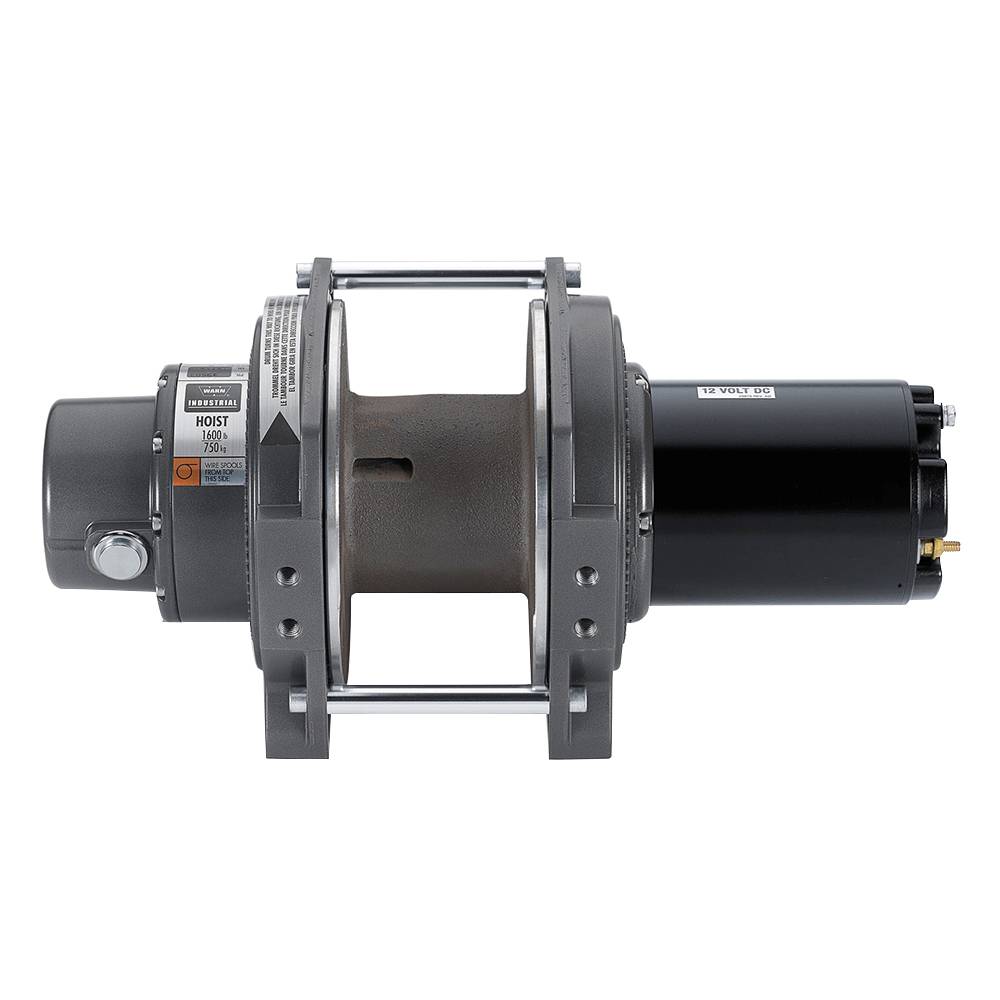

Warn 33503 DC1600 LF Industrial DC Hoist

The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on Warn's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity.

Features

• Powerful permanent magnet DC motor with robust sealing
• Proven 3-stage planetary gear train
• Permanent grease lubrication
• Automatic cone brake that holds full rated load
• Large frame with a cast aluminum drum for plenty of wire rope capacity
• Limited 1 year warranty

Specifications

• Type: Electric
• Recommended Use: Industrial
• Voltage: 12 volt
• Motor Type: Permanent Magnet
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 261:1
• Free Spooling: No
• Brake Type: Automatic Cone Brake
• Conforms to J706 Standards: No
• Mounting Hole Quantity: 8
• Operation Type: Automatic
• Mounting Pattern Length: 6 inch
• Mounting Pattern Width: 4-1/2 inch
• Includes Mounting Hardware: No
• Color: Black
• Max Amp Draw/Line Pull: 95 Amp Draw/1600 pound
• Max Line Pull/Line Speed: 1600 lb/12.5 ft per minute

Vehicle Fitment

This part is universal

Technical Files

Data Sheet
