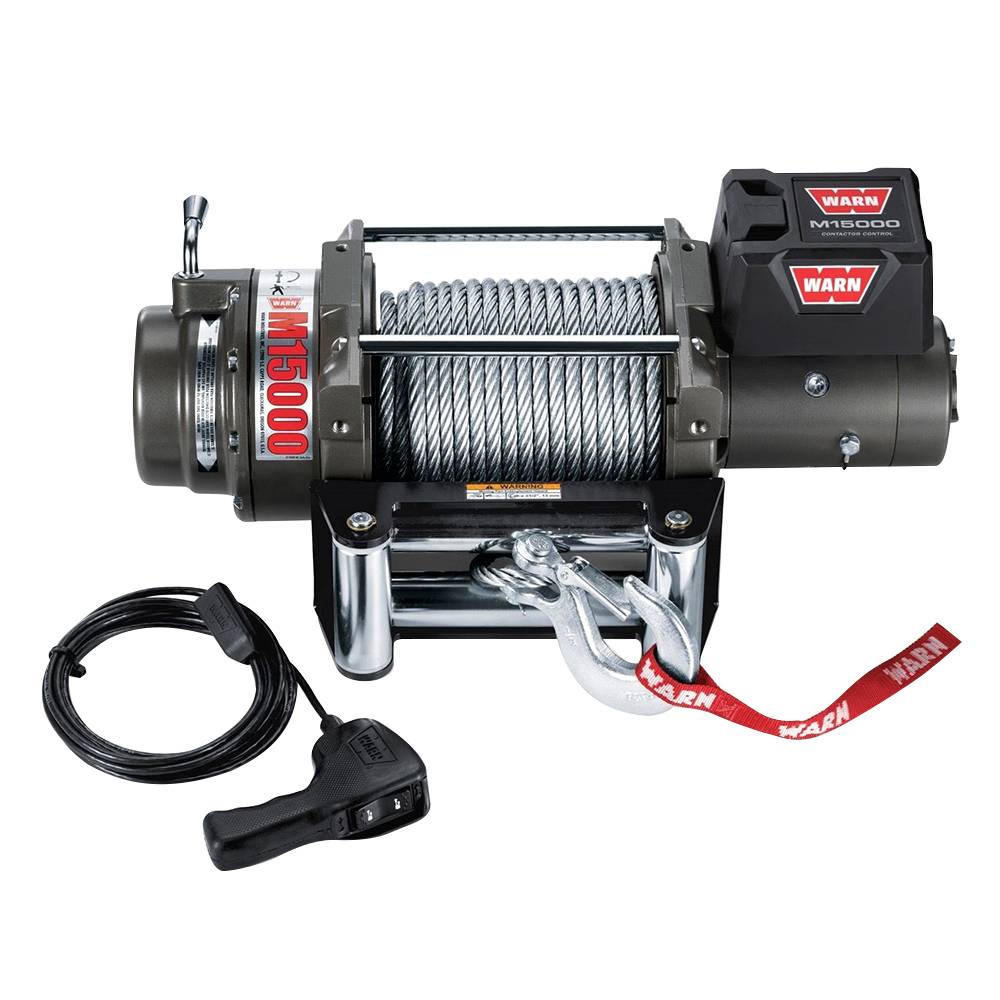

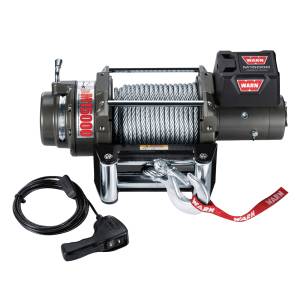

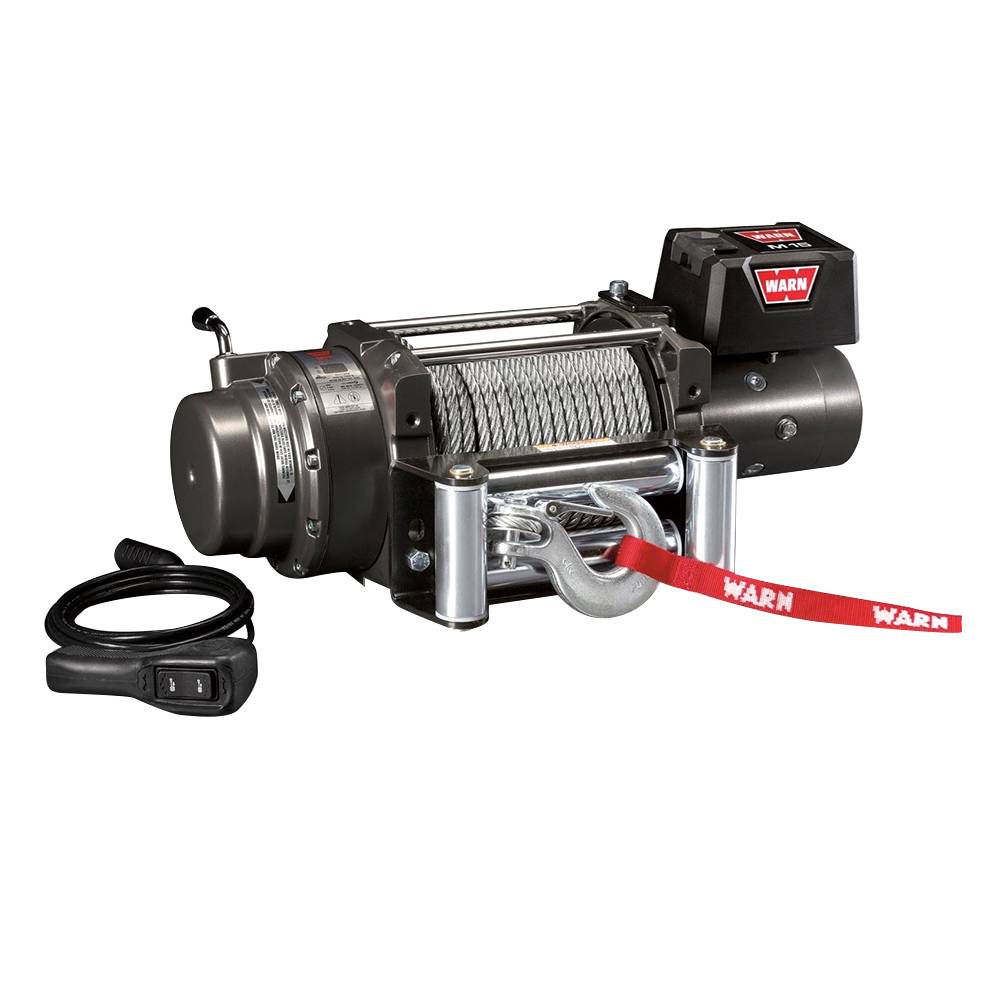

Warn 47801 M15000 Self-Recovery Winch

View Additional Required Parts >>

47801
Brand: Warn
Part Number: 47801
Product Type: Winch
Condition: New
Shipping: Free Shipping!
Was: $2,352.49
Sale: $1,881.99
Save: 20%
Save: $470.50

Qty:
Free Shipping!

Description

When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The Warn winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 lb Load. The gear ratio is 315:1, with 90 ft of 7/16 inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

Features

  • Most powerful winches on the market
  • Pulling capacity up to 16,500 lb
  • High strength carrier plates to handle the heavy gear train stresses
  • Limited lifetime warranty for mechanical components
  • limited seven (7) year warranty for electrical components

Specifications

  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommended Use: Vehicle Recovery
  • Voltage: 12 volt
  • Motor Horsepower: 4.6 horsepower
  • Electrical Control Type: Contactors
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 315:1
  • Free Spooling: Yes
  • Brake Type: Mechanical Cone
  • Line Diameter: 7/16 inch
  • Line Length: 90 ft
  • Line Material: Steel
  • Fairlead Type: Roller
  • Conforms to J706 Standards: No
  • Remote Type: Handheld Remote Switch
  • Mounting Hole Quantity: 4
  • Operation Type: Automatic
  • Mounting Pattern Length: 10 inch
  • Mounting Pattern Width: 4-1/2 inch
  • Includes Mounting Hardware: No
  • Color: Gray
  • Max Line Pull/Line Speed: 15000 pound/2.48 ft per minute
  • Max Amp Draw/Line Pull: 460 Amp Draw/15000 pound

Vehicle Fitment

This part is universal

Technical Files

Installation Instructions

Warranty Information

Manufacturer

Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.
