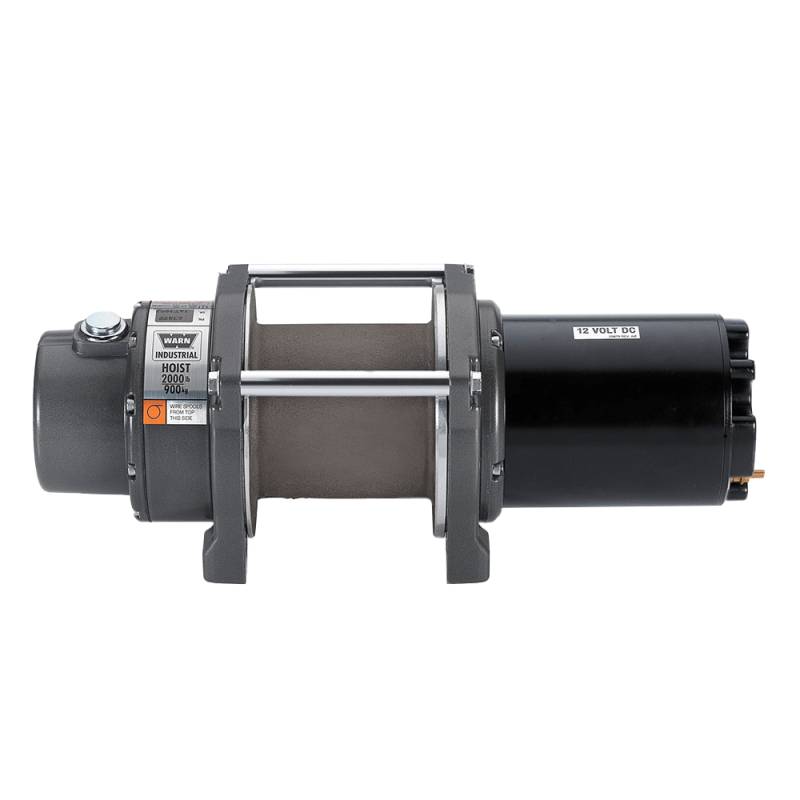

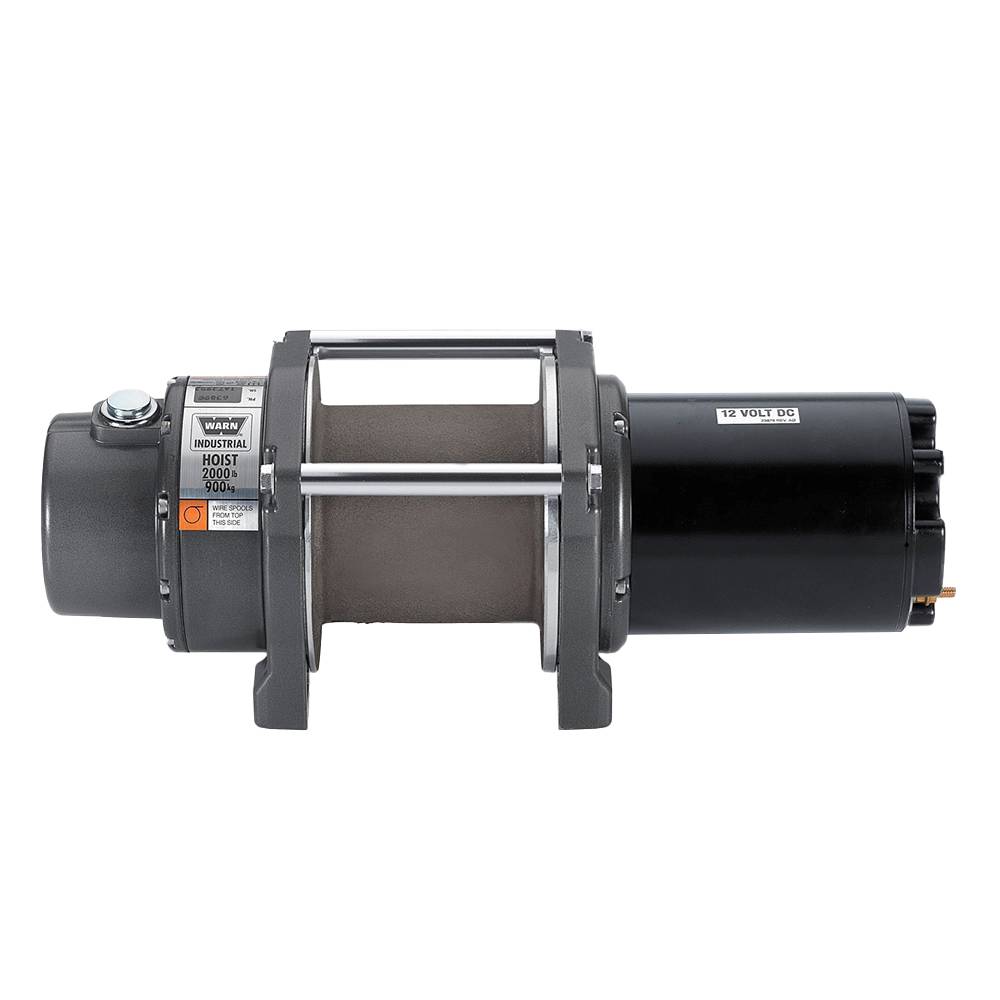

Warn 63899 DC2000 MF Industrial DC Hoist

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that's easy to install.

Features

• Powerful permanent magnet DC motor with robust sealing
• Proven 3-stage planetary gear train
• Permanent grease lubrication
• Automatic cone brake that holds full rated load
• Compact midsize frame with integrated tie bars for easy installation
• Limited 1 year warranty

Specifications

• Type: Electric
• Recommended Use: Industrial
• Voltage: 12 volt
• Motor Type: Permanent Magnet
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 261:1
• Free Spooling: No
• Brake Type: Automatic Cone Brake
• Conforms to J706 Standards: No
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 6 inch
• Mounting Pattern Width: 4-1/2 inch
• Includes Mounting Hardware: No
• Color: Black
• Max Amp Draw/Line Pull: 54 Amp Draw/2000 pound
• Max Line Pull/Line Speed: 2000 lb/12.8 ft per minute

Vehicle Fitment

This part is universal

Technical Files

Data Sheet
