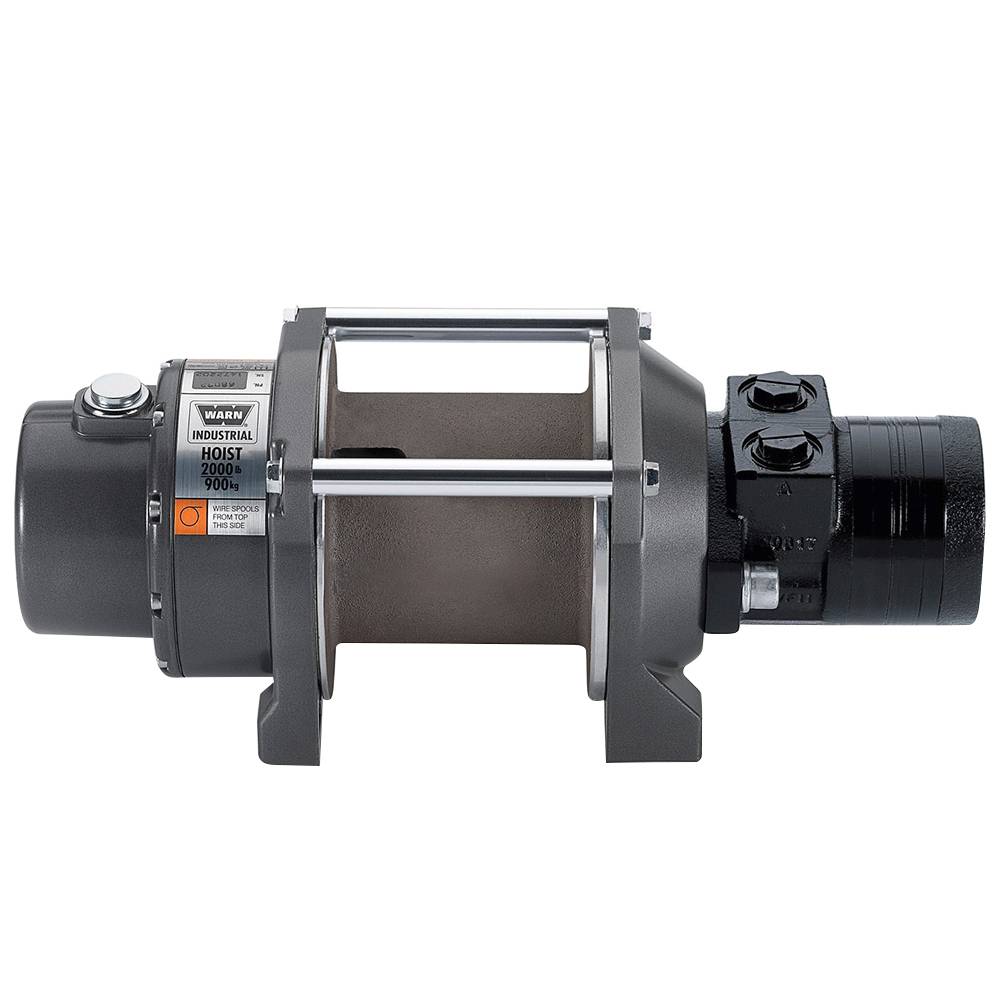

Warn 68032 HY2000 Industrial Hydraulic Hoist

The hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The hoist is built on a compact midsize frame with integrated tie bars that's easy to install.

Features

• Powerful and efficient hydraulic motor with robust sealing
• Permanent grease lubrication means years of trouble free service
• Durable powder coated finish stands up to the elements and looks great
• Built on a compact midsize frame with integrated tie bars that's easy to install
• Limited 1 year warranty

Specifications

• Type: Hydraulic
• Motor Type: Permanent Magnet
• Recommended Use: Industrial
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 26:1
• Free Spooling: No
• Brake Type: Automatic Cone Brake
• Conforms To J706 Standards: Yes
• Mounting Hole Quantity: 4
• Mounting Pattern Length: 6 inch
• Mounting Pattern Width: 4-1/2 inch
• Includes Mounting Hardware: No
• Color: Black
• Max Line Pull/ Line Speed: 2000 pound/ 14 ft per minute

Technical Files

Installation Instructions
