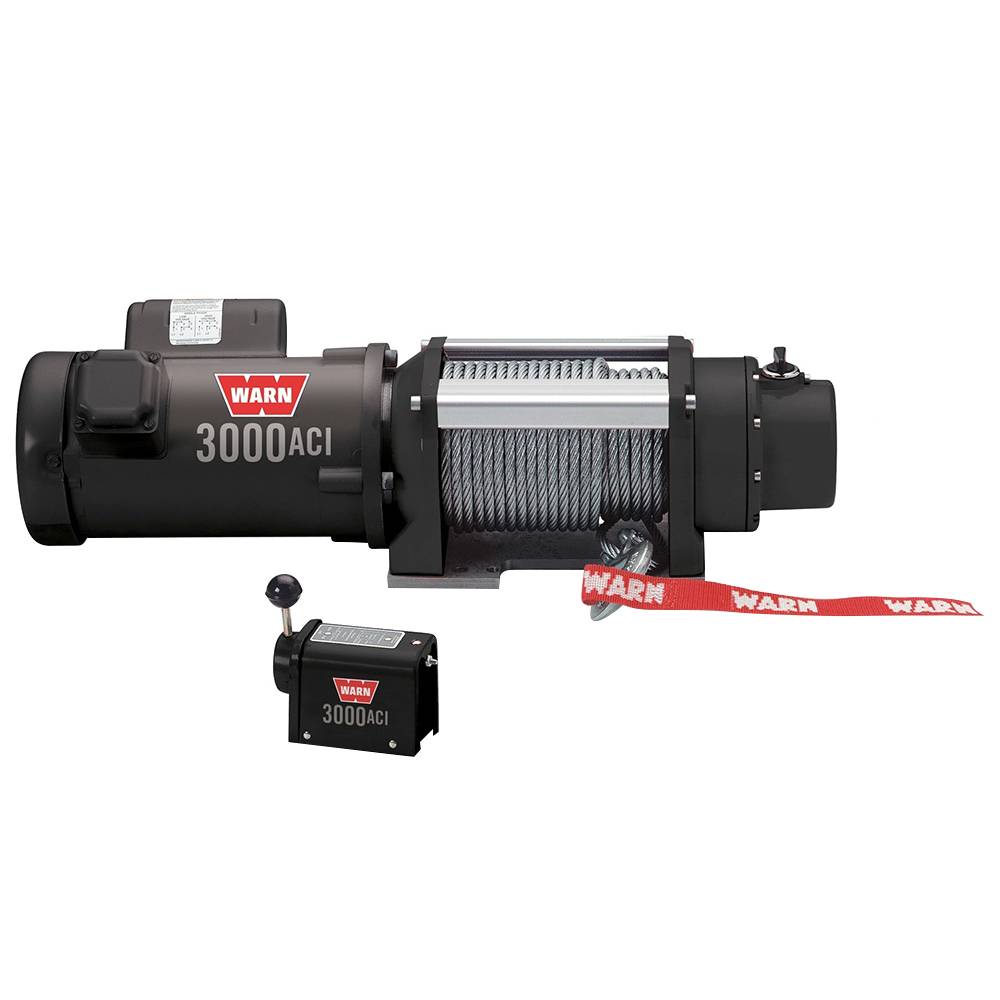

Warn 93000 3000 ACI Winch

With a 3,000 lb pulling capacity, a TEFC Induction AC motor for a long duty cycle and 100' of 5/16" wire rope, the 3000 ACI just what you need when you need a heavy-hauling AC powered winch. The perfect fixed-mount station winch. CSA approved.

Features

• With 3,000 pounds pulling capacity
• TEFC induction AC motor for a long duty cycle
• Limited 1 year warranty

Specifications

• Type: Electric
• Mount Type: Fixed Mount
• Recommended Use: Industrial
• Voltage: 115/ 230 volt
• Motor Horsepower: 0.7 horsepower
• Motor Type: TEFC Induction
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 216:1
• Free Spooling: No
• Brake Type: Mechanical and Dynamic
• Line Diameter: 5/16 inch
• Line Length: 100 ft
• Line Material: Steel
• Fairlead Type: No Fairlead
• Conforms To J706 Standards: No
• Remote Type: Drum Switch
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 4 inch
• Mounting Pattern Width: 4-1/2 inch
• Includes Mounting Hardware: Yes
• Color: Gray
• Max Line Pull/ Line Speed: 3000 pound/ 8.1 ft per minute
• Max Amp Draw/ Line Pull: 20.9 Amp Draw/ 3000 pound

Vehicle Fitment

This part is universal
