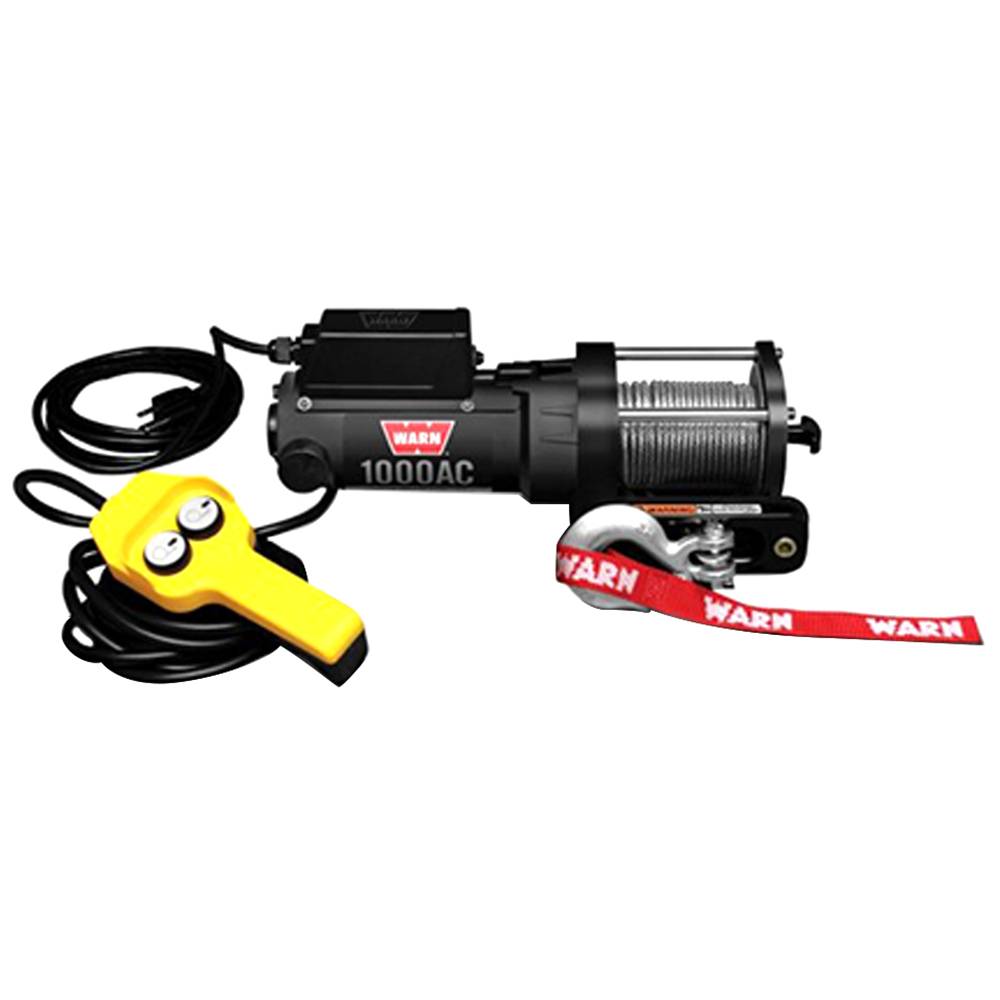

Warn 80010 1000 AC Winch

This Warn industries 1000AC series 120 volt electric winch is portable and has a pull capacity of 1,000 pound. It has a 43 feet wire rope. Wherever there is a wall socket, you can now pull or drag just about anything anywhere with the versatile Warn 1000AC utility winch. The 1000AC winch delivers 1,000 lbs. of pulling capacity, 43' of wire rope, a long duty cycle and legendary Warn durability make this a tool you can rely on to get the job done. CSA approved.

Features

• The 1000AC winch delivers 1,000 pounds of pulling capacity
• 43 ft of wire rope, a long duty cycle and legendary Warn durability make this a tool you can rely on to get the job done
• Limited 1 year warranty

Specifications

• Type: Electric
• Color: Gray
• Mount Type: Portable
• Recommended Use: Utility
• Voltage: 120 volt
• Motor Horse Power: 0.8 Horsepower
• Electrical Control Type: Circuit Breaker Protected
• Motor Type: Permanent Magnet
• Thermal Shutoff: No
• Drive Gear Type: Differential Planetary
• Gear Reduction Ratio: 261:1
• Free Spooling: Yes
• Brake Type: Self Braking Transmission
• Line Diameter: 3/16 inch
• Line Length: 43 ft
• Line Material: Steel
• Fairlead Type: Hawse
• Conforms to J706 Standards: No
• Remote Type: Pendant Remote Switch
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 3.1 inch
• Mounting Pattern Width: 2-1/2 inch
• Maximum Draw/Line Pull: 6 Amp Draw/ 1000 pound
• Maximum Line Pull/Line Speed: 1000 pound/ 5.5 ft per minute

Vehicle Fitment

This part is universal
