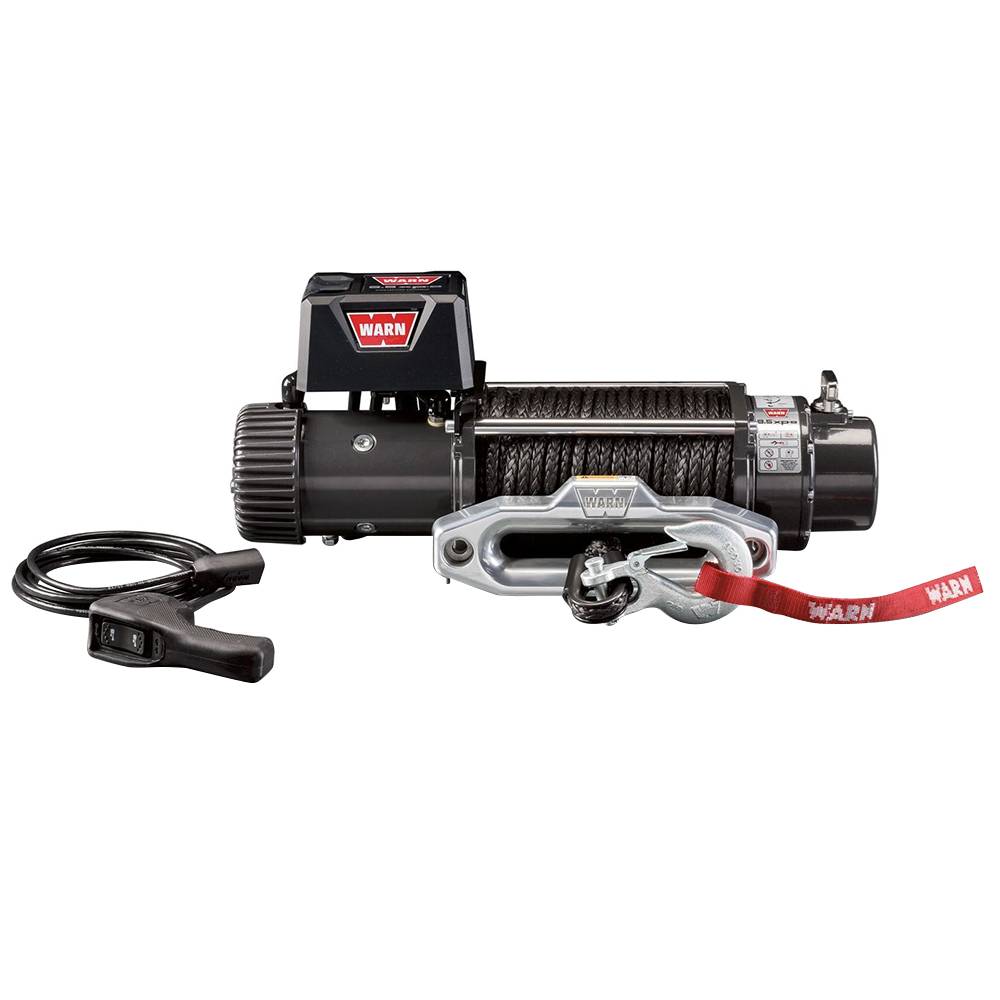

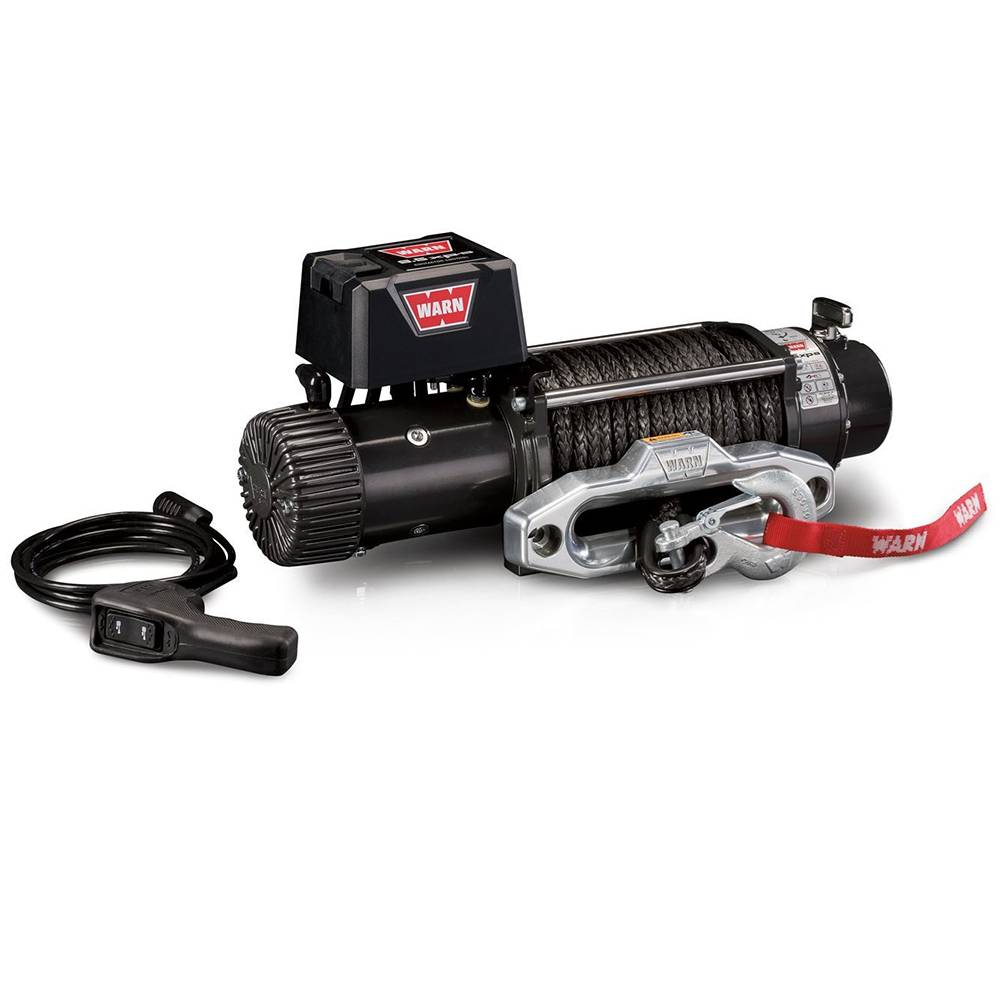

Warn 87310 9.5XP-S Self-Recovery Winch

The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lb of pulling power and the fastest line speed of any Warn winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition

Features

• Now available with Warn spydura synthetic rope with matte aluminum hawse fairlead
• High-output parallel series wound winch motor is the strongest and most durable in the industry
• Extreme-duty winch sealing. Enables superior water resistance
• Exclusive brake design. Provides superior operator control when winching
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
• Remote-mount, next-generation control box allows for various mounting options
• Remote control with 12' (3.7m) lead
• High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
• 100' of Warn Spydura synthetic rope
• Limited lifetime warranty (geartrain), 7 year warranty (electrical)

Specifications

• Type: Electric
• Mount Type: Vehicle Mounted
• Motor Horsepower: 6 horsepower
• Recommended Use: Vehicle Recovery
• Voltage: 12 volt
• Motor Type: Series Wound
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 156:1
• Brake Type: Mechanical Cone
• Electrical Control Type: Contactors
• Line Diameter: 3/8 Inch
• Line Length: 100 ft
• Line Material: Synthetic
• Fairlead Type: Hawse
• Remote Type: Handheld Remote Switch
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 10 inch
• Mounting Pattern Width: 4-1/2 inch
• Color: Gray
• Max AMP Draw/Line Pull: 482 Amp Draw/ 9500 pound
• Max Line Pull/Line Speed: 9500 pound/ 6.2 ft per minute

Vehicle Fitment

This part is universal
