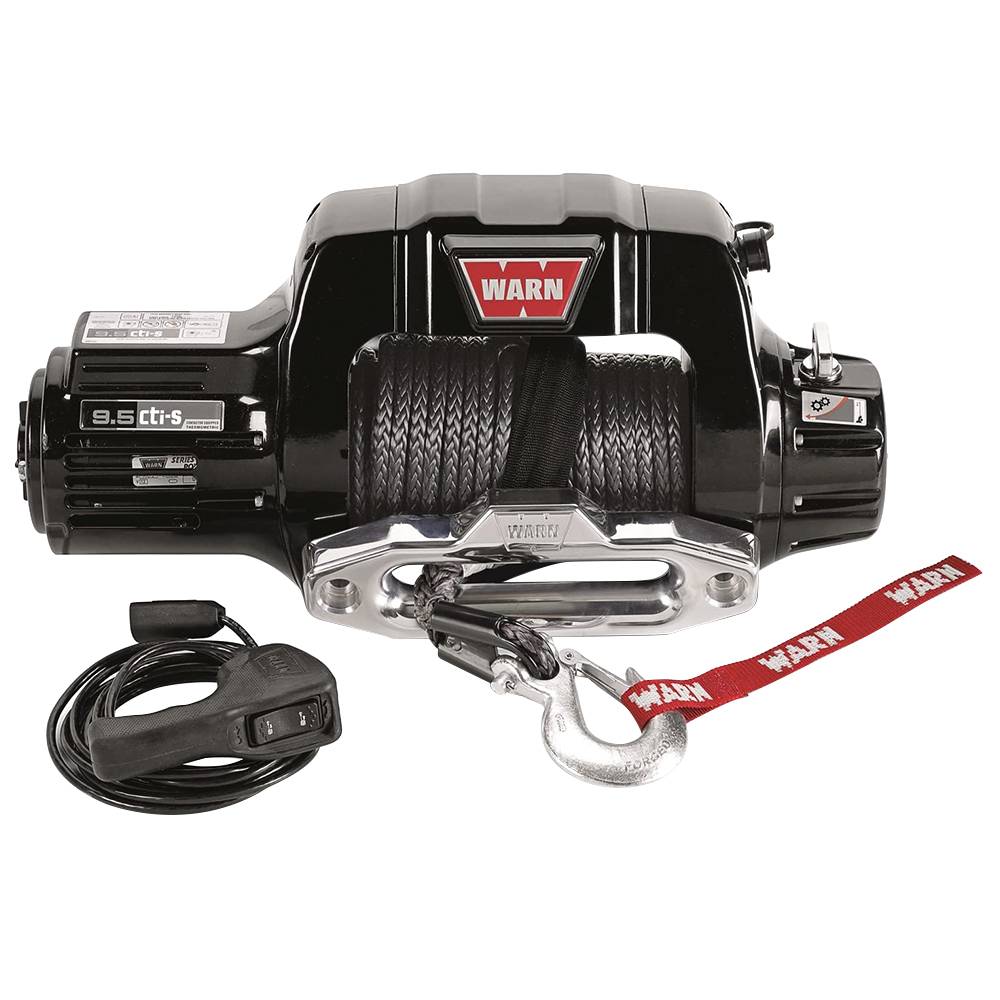

Warn 97600 9.5CTI-S Self-Recovery Winch

The Warn 9.5cti-s is an ideal mix of tough and tech. It has a 9,500 lb. (4310 kg) single-line pulling capacity with fast line speeds and all-new contactor for optimum winch control and performance. This ultra-durable, ultra-reliable contactor complete with cadmium-plated copper contacts extends heat resistance and provides an outstanding duty cycle. It also has new levels of weather sealing and longevity, adding to the winches Ultimate Performance qualities. The 9.5cti-s also features a motor-mounted thermometric sensor that provides motor temperature feedback via an indicator lamp located on the winch remote. Speaking of remote, the 9.5cti-s has a redesigned pistol-grip remote with increased ergonomics, durability, and sealing.

Features

• Durable, chip-resistant high-gloss black powder-coated finish
• Extreme-duty winch sealing system
• Redesigned remote control with thermometric indicator light
• High-output parallel series wound winch motor is the strongest and most durable in the industry
• Enables superior water resistance
• Exclusive brake design provides superior operator control when winching
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-stage Planetary geartrain proven to be the most reliable efficient and durable design
• Remote-mount, next-generation control box allows for various mounting options
• Remote control with 12' (3.7m) lead

Specifications

• Winch Model: 9.5cti-s
• Rated Line Pull: 9500 lb Single-Line
• Motor: 12V, Series-Wound
• Electrical Controls: Contactor
• Remote Control: Remote Switch, 12 ft (3.7 m) Lead
• Gear Train: 3-stage Planetary
• Gear Ratio: 156:1
• Clutch (Freespooling): Sliding Ring Gear
• Brake: Automatic mechanical Cone
• Drum Diameter/Length: 2.5 inch/9.0 inch
• Weight: 89 lb
• Wire Rope: 100 ft, 5/16 inch diameter
• Fairlead: Hawse
• Recommended Battery: 650 CCA Minimum for Winching
• Battery Leads: 2 Gauge, 72 inch
• Size: 23.01 inch x 6.3 inch x 10.4 inch

Vehicle Fitment

This part is universal

Technical Files

Installation Instructions
