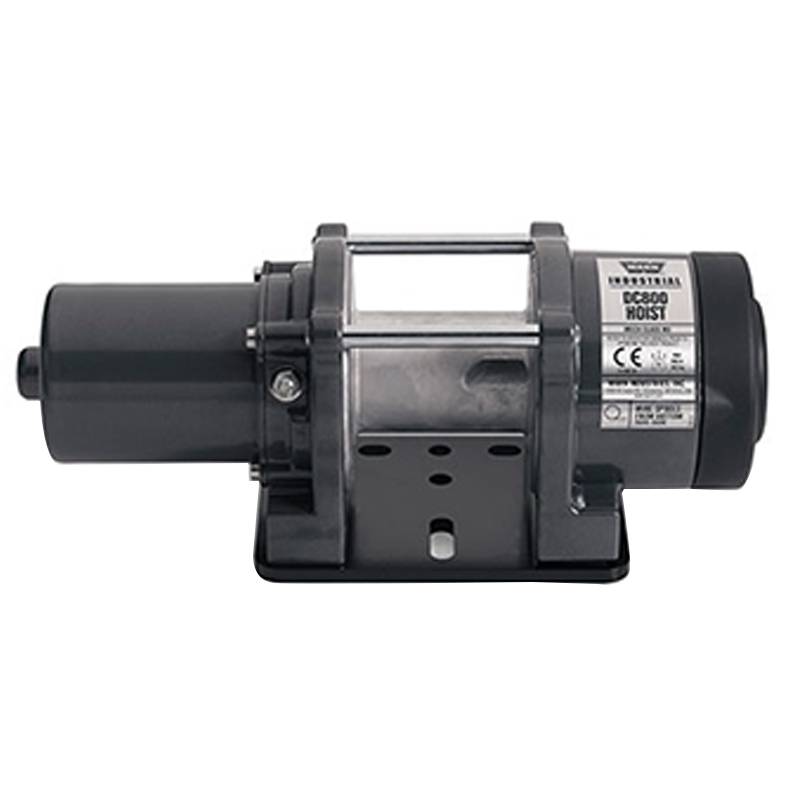

Warn 82468 DC800 Industrial DC Hoist

The DC800 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All Warn hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC800 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy.

Features

• Combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal gear train
• Incorporates an automatic mechanical brake that holds full rated load
• Durable powder coated finish stands up to the elements and looks great
• Limited 1 year warranty

Specifications

• Type: Electric
• Recommended Use: Industrial
• Voltage: 24 volt
• Motor Type: Permanent Magnet
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 154:1
• Free Spooling: No
• Brake Type: Disc Brake
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 4.87 inch
• Mounting Pattern Width: 3 inch
• Includes Mounting Hardware: Yes
• Color: Black
• Max Line Pull/ Line Speed: 800 pound/ 14 ft per minute
• Max Amp Draw/ Line Pull: 30 amp Draw/ 800 pound

Vehicle Fitment

This part is universal

Technical Files

Data Sheet
