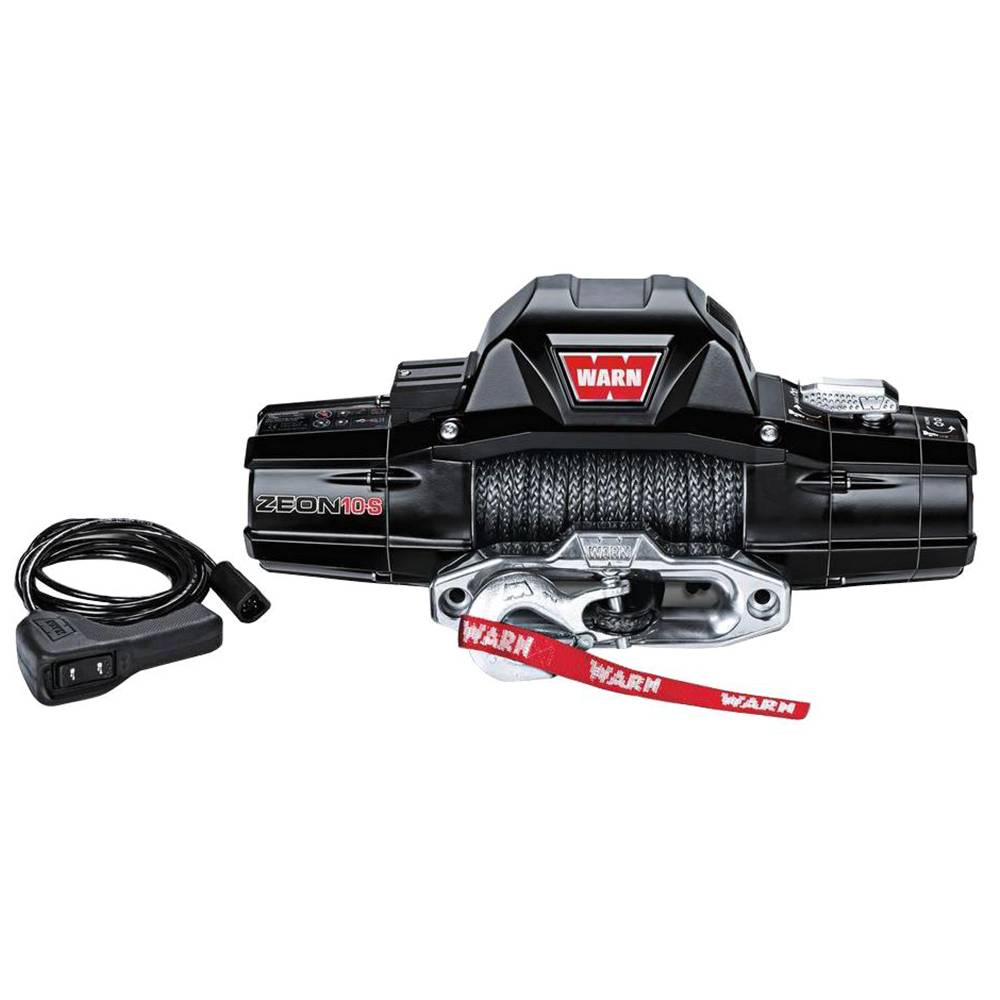

Warn 89611 ZEON 10-S Recovery Winch

The next generation of winches is here: Warn ZEON. With a modern rugged design, upgraded internal components, and increased performance and durability, ZEON is a new name from the most trusted name in winches. With a bold look and power to match, the ZEON is like nothing You have ever seen before. Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong. New-design planetary geartrain and series-wound motor deliver fast, quiet, and reliable pulling power. Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). Large diameter, aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation. IP68 rated for improved winch sealing to keep the elements out.

Features

• Corrosion-resistant powder coated surface
• Remote controlled operation offers convenience
• Planetary gear train for fast and reliable pulling power delivery
• Large winch drum reduces rope wear

Specifications

• Winch Model: ZEON 10-S
• Rated Line Pull: 10,000 lb Single-Line
• Motor: 12V, Series-Wound
• Electrical Controls: Contactor
• Remote Control: Remote Switch, 12 ft (3.7 m) Lead
• Gear Train: 3-stage Planetary
• Gear Ratio: 216:1
• Clutch (Freespooling): Rotating Ring Gear
• Brake: Automatic Mechanical Cone
• Drum Diameter/Length: 3.15 inch/9.0 inch
• Weight: 75 lb
• Wire Rope: 100 ft, 3/8 inch
• Fairlead: Hawse
• Recommended Battery: 650 CCA Minimum for Winching
• Battery Leads: 2 Gauge, 72 inch

Vehicle Fitment

This part is universal
