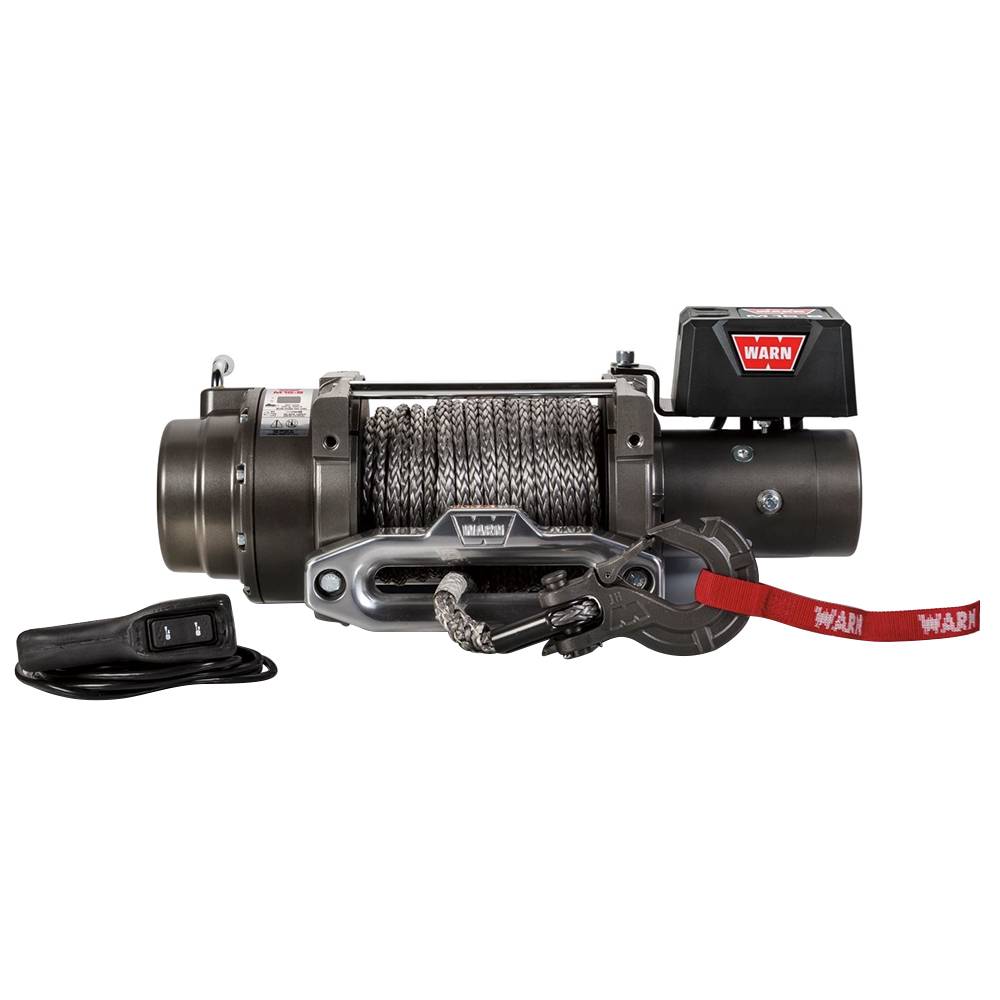

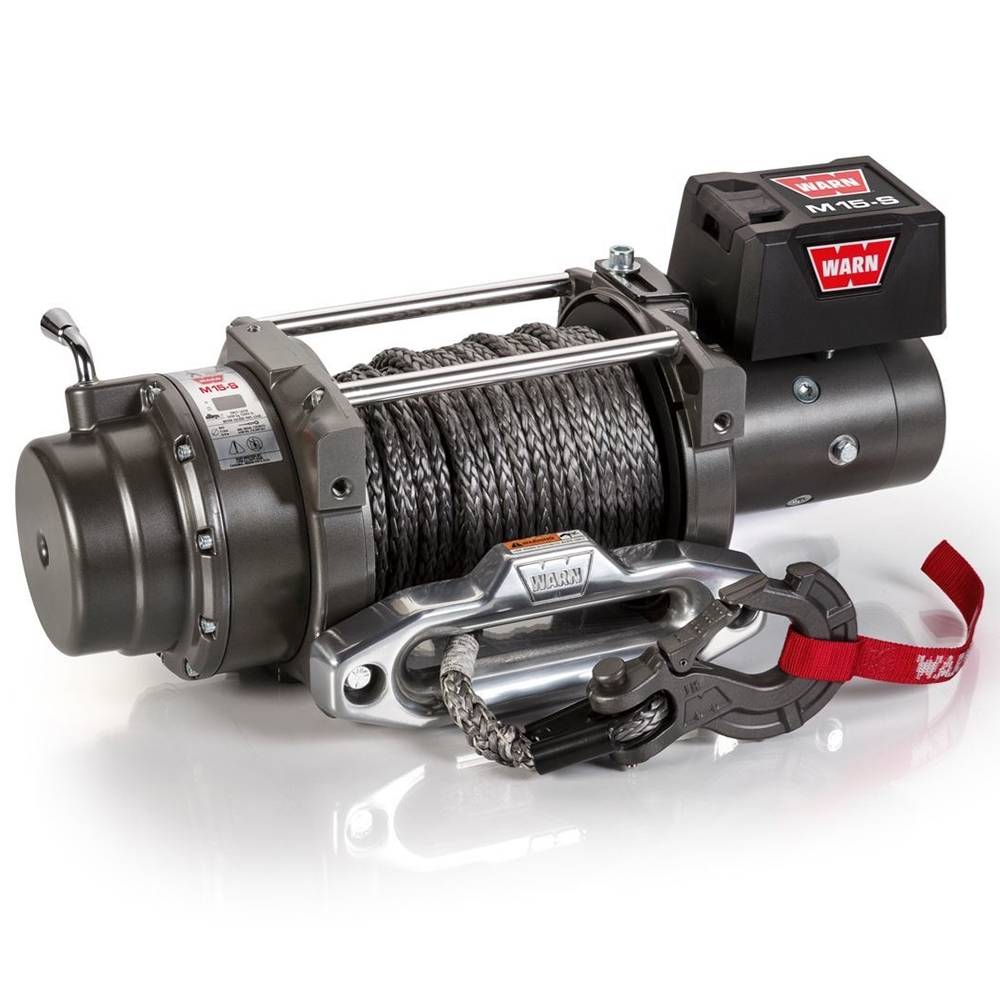

Warn 97730 Heavy Weight Series Winch

The Warn M15-S is a heavy-duty winch with 80' of 3/8" lightweight, easy-to-handle Spydura Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. And with a hefty 15,000 lb. pulling capacity, this winch is built for performing the long, heavy pulls.

Features

• 15,000 lb. capacity
• Includes 80' of 3/8" spydura pro synthetic rope
• Includes 18,000 lb capacity EPIC hook
• Large-frame winch architecture mounts feet forward
• Contactor control for the ultimate in reliable electronics
• Powerful, efficient series-wound motor
• Durable, smooth three-stage planetary gear train
• Best-in-class cone brake
• Limited lifetime warranty for mechanical components. Limited seven (7) year warranty for electrical components

Specifications

• Type: Electric
• Mount Type: Vehicle Mounted
• Recommended Use: Vehicle Recovery
• Voltage: 12 volt
• Electric Control Type: Contactors
• Motor Type: Series Wound
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 315:1
• Free Spooling: Yes
• Brake Type: Automatic Mechanical Cone
• Line Diameter: 3/8 inch
• Line Length: 80 feet
• Line Material: Synthetic
• Fairlead Type: Hawse
• Conforms To J706 Standards: No
• Remote Type: Wired
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length: 10 inch
• Mounting Pattern Width: 4-1/2 inch
• Includes Mounting Hardware: Yes
• Color: Gray
• Max Line Pull/ Line Speed: 15000 pound/ 2.48 ft per minute
• Max Amp Draw/ Line Pull: 460 Amp Draw/ 15000 pound

Vehicle Fitment

This part is universal
