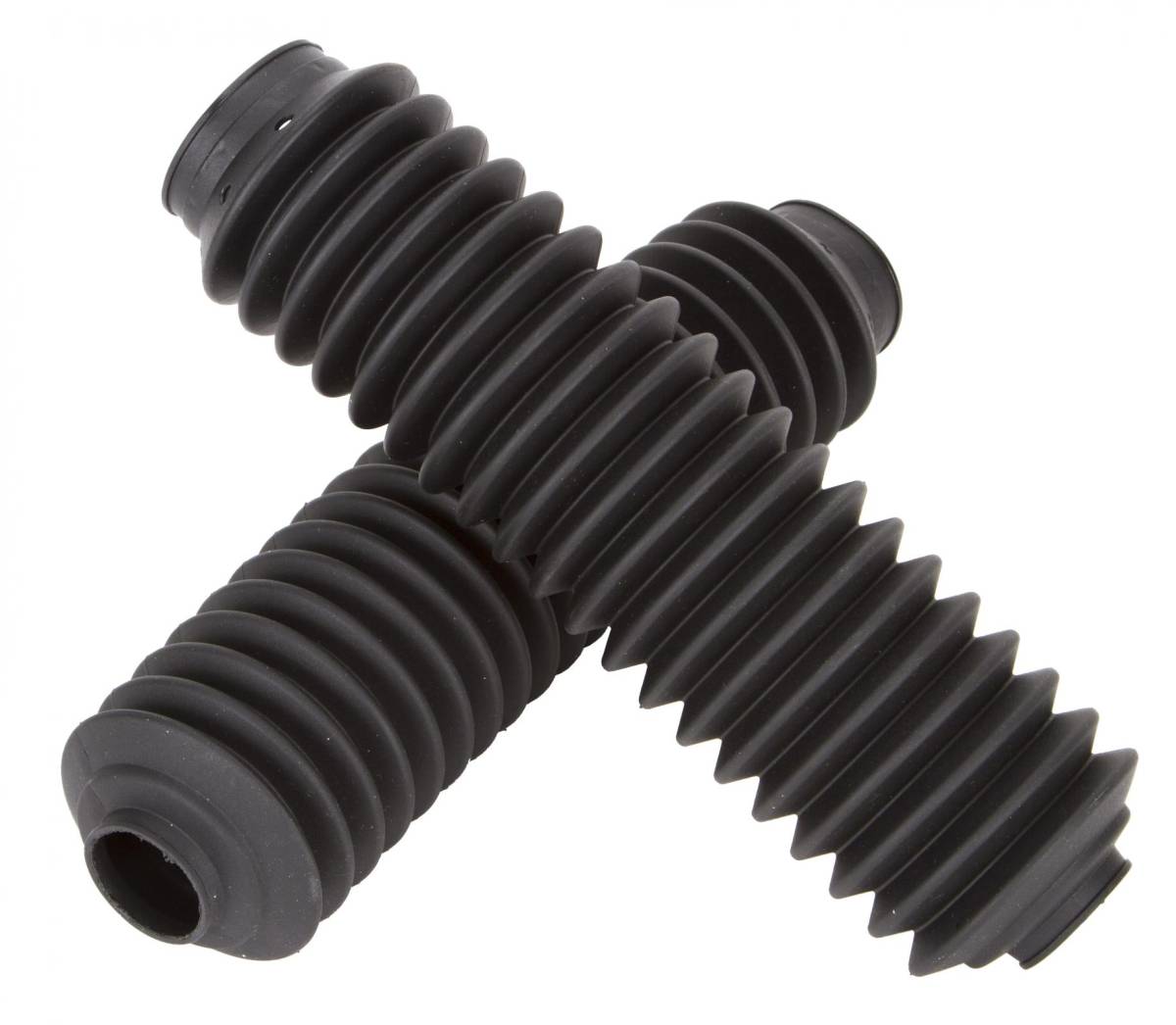

Daystar MX00503BK Honda/Kawasaki/Suzuki/Yamaha Fork Boot 13" Travel 16.5" Extended 3.5" Collapsed Black

MX00503BK

Daystar MX00503BK Motorcycle Fork Boot Pair - Stroke 13.0 in. - Extended 16.50 in. - Collapsed 3.50 in. - Upper Cuff Diameter 1.40625 in. - Lower Cuff Diameter 2.25 in. - Black

See Full List of Vehicle Applications »

Was: $32.20
Sale: $25.76
Save: 20%
Save: $6.44
Qty:

Description

Fork Boot. Extends the life of fork seals and protects forks from roosts and debris. More resistant to the elements than rubber fork boots Available in multiple colors and packaged in pairs.

FEATURES INCLUDE

Color Black
Upper cuff diameter: 1-13/32 Inch (35-40mm)
Lower cuff diameter: 2-1/4 Inch (56mm)
Poly vinyl
Sold as Pair
Made in the USA

Fits:

Honda XR 250R 1981 2004
Honda XR 400R 1996 2004
Honda XR 650L 2000 2009
Kawasaki KDX 200 1995 2006
Kawasaki KDX 220 1997 2005
Kawasaki KLR 650 1987 2007
Suzuki DR 650SE 1996 2009
Suzuki DR Z250 2000 2006
Yamaha TT-R 250 1999 2006

Manufacturer

Daystar has been Designing and Producing Precision Plastic Components for Four Wheel Drive Trucks, Motocross Bikes, Passenger Cars, and Mountain Bikes since 1977. We produce millions of plastic injection molded parts every year on micro processor controlled Van Dorn molding machines ranging in size from 85 to 400 tons. The design and production of elastomeric boots or bellows is a Daystar specialty. We have developed proprietary design software, specialized injection molding bases, special purpose robotics, and unique boring and turning tools that enable us to provide the optimum boot solution to our customer at unrivaled tooling and piece part prices. Daystar is a recognized specialist in manufacturing cast polyurethane elastomeric and microcellular foam parts for the automotive industry. We have developed several families of proprietary polymer formulations that give us the ability to match material properties to the specific application at hand. Engineering excellence is not just a catch phrase at Daystar - it is the foundation of our company. Daystar engineers can execute all aspects of the design process for part modeling and simulation to multi axis toolpath creation. Daystar has been producing high quality injection molds for over 30 years ranging in sophistication from single cavity prototype molds to multicavity molds with hot runners and side actions. Our production facility includes multiple dispensing lines, a clean room for steel preparation for bonding operations, several custom designed automatic parts trimmers, a laboratory for testing part designs and material properties, and most importantly, a skilled team with a proven track record.

Details

  • MX00503BK
  • MX00503BK
  • Daystar
  • DAY
  • New

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W3.5000” x H7.0000” x L12.0000”
