Aluminess 210288.1 Rear Bumper with Hitch and Bike Rack Swing Arm - Single Rear Wheel for Mercedes Sprinter 2007-2018

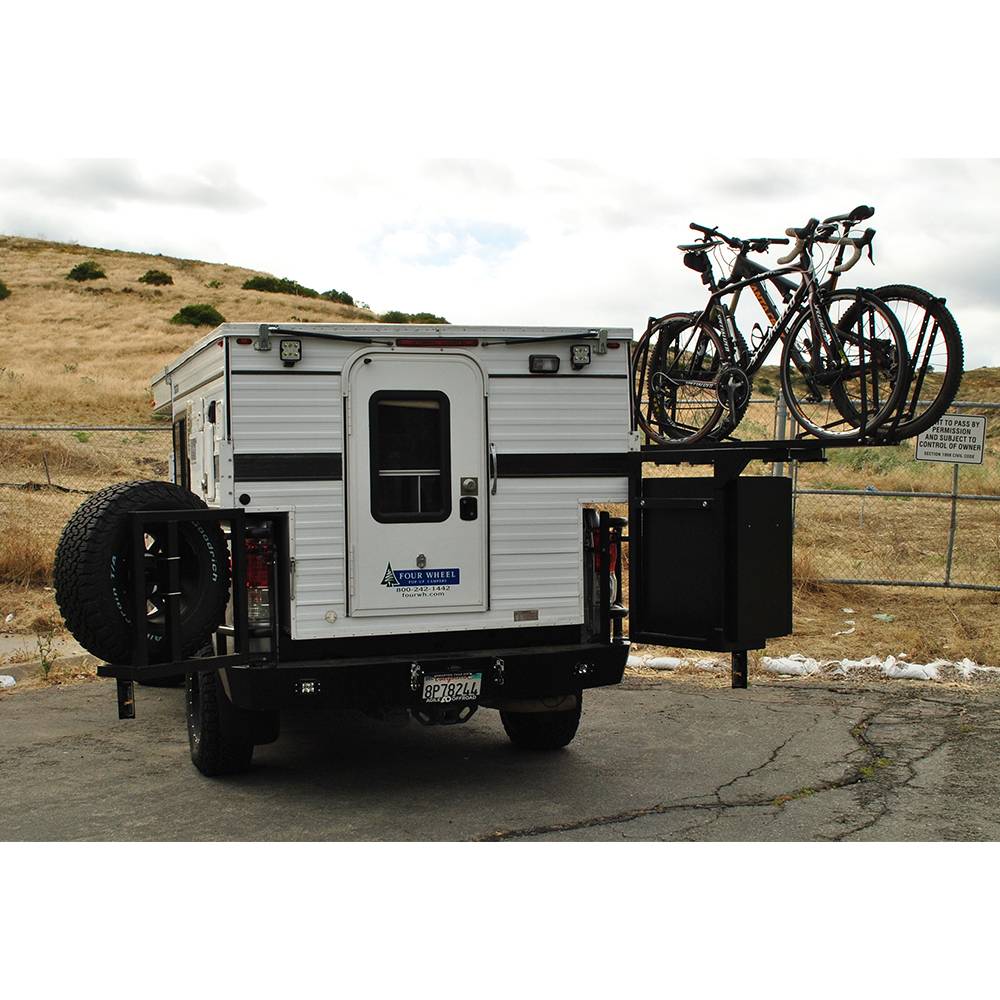

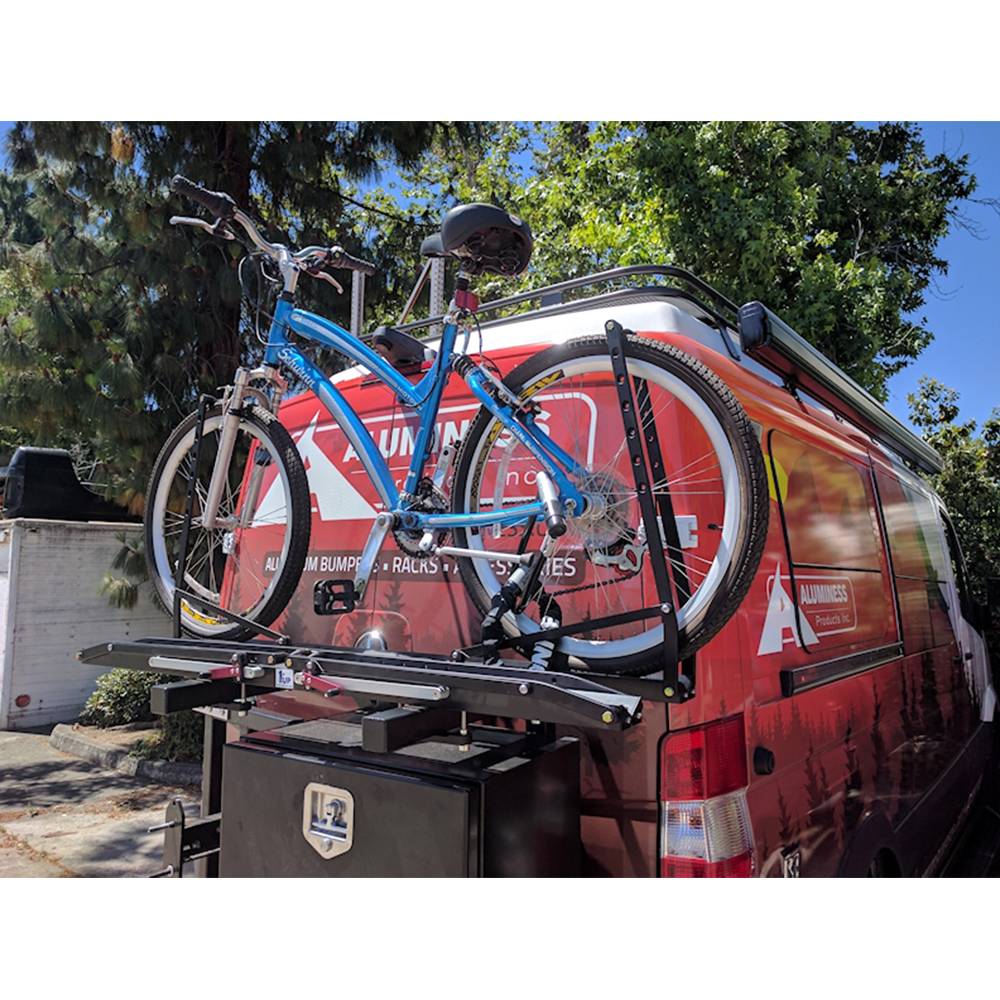

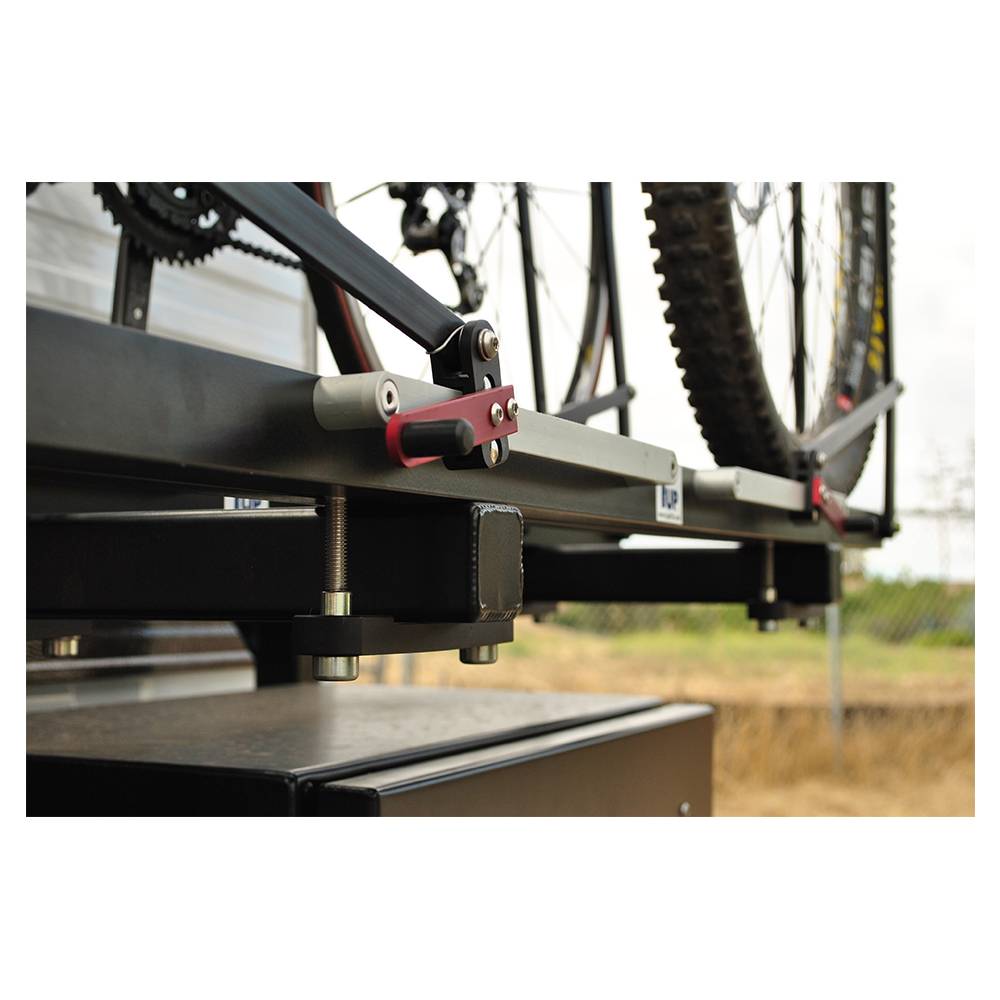

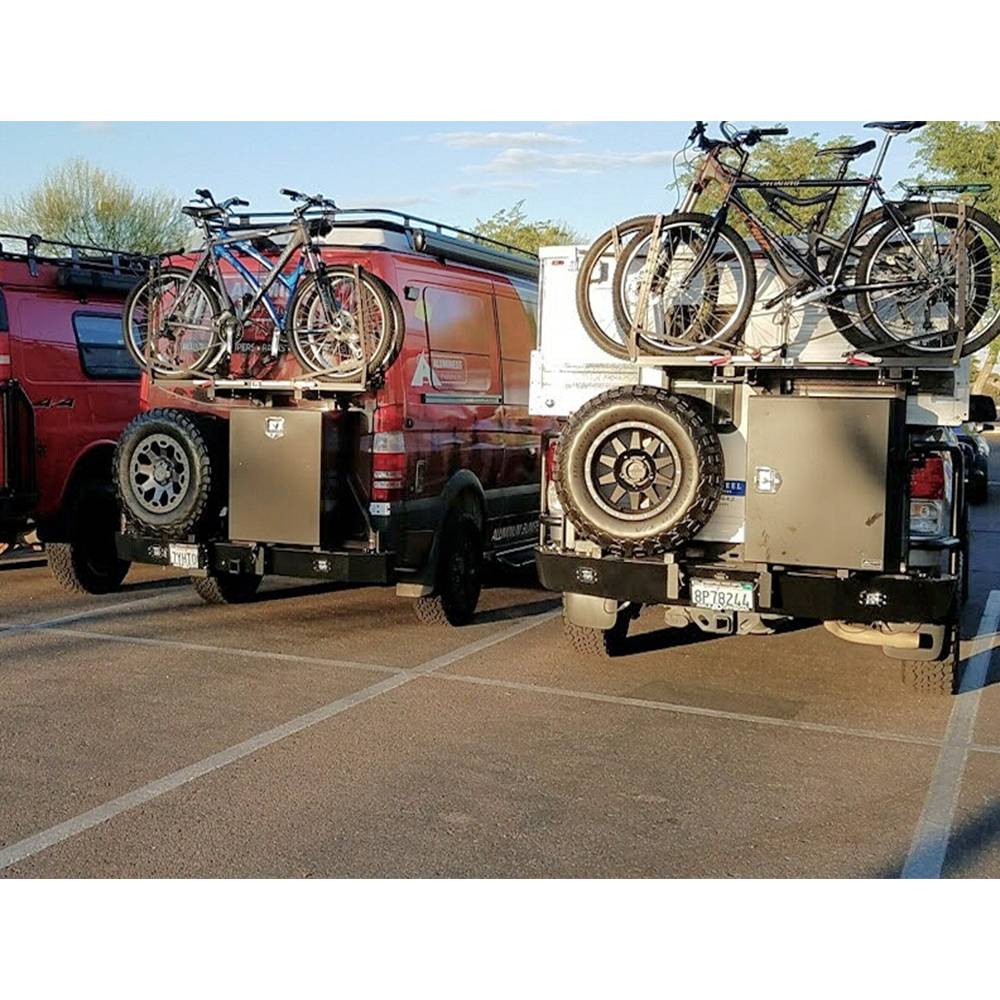

The Aluminess Bike Rack Swing Arm is designed to replace the existing box arm on your Aluminess rear bumper. The bike rack swing arm is able to hold 2 bikes and swing open with your Aluminess Box. The swing arm is designed to clear tires up to 35" in diameter and is available for most of existing rear bumpers. The swing arm is capable of holding 100 pounds on the upper platform and 100 pounds on the lower platform. Aluminess recommends the swing arm be installed with 1-UP USA bike rack trays. They are available for purchase from Aluminess with necessary hardware for easy installation. Other bike rack trays may work with platform, but have not been tested. Therefore, no warranty is available with other bike rack mounts.

Features

• Fabricated on state-of-the-art equipment
• Built extremely tough to last a lifetime

Specifications

• Position: Rear
• Bumper Type: Light Duty
• Color/Finish: Black Powder Coat
• Material: Aluminum
• Step Included: No
• D-Rings Mount: No
• Sensor Cutouts: No
• Maximum Tire Size: 35"
• Towing Capacity: 5000 lb
• Tongue Weight: 500 lb
• Bike Rack Swing Arm Weight Limit: 200 lb
