Icon K63003 7"-9" Stage 1 Coilover Conversion System for Ford F250/F350 2008-2010

Icon vehicle dynamics is an industry leader when it comes to ford super duty performance. Engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Icon 7-9" stage 1 coilover conversion system for the 08-10 super duty yields enough lift to clear 37" tires while providing excellent ride characteristics across a wide variety of terrain on and off-road.

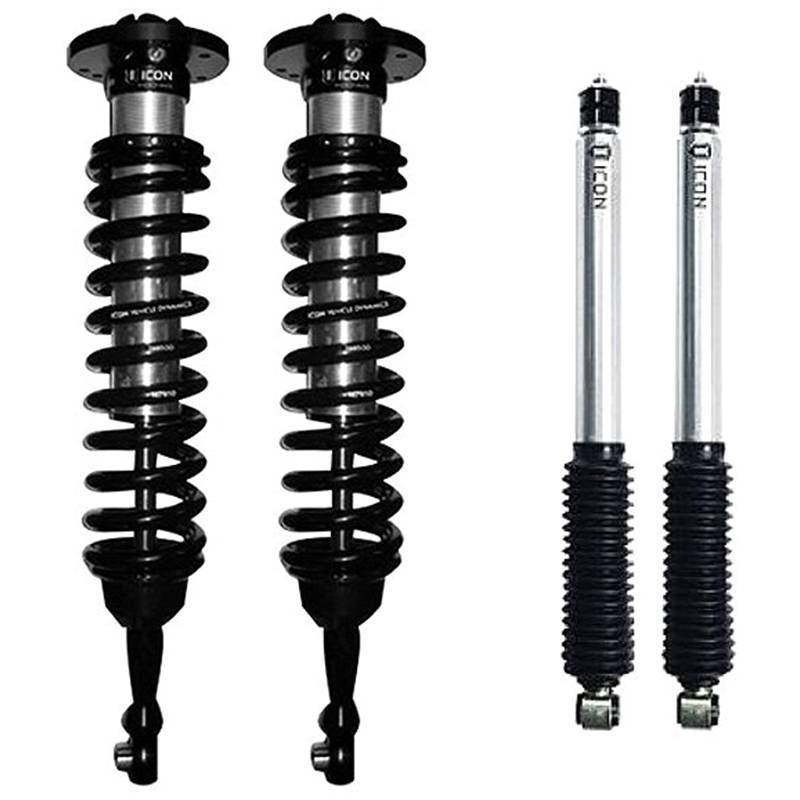

Each component of this suspension system has been specifically engineered to work in union with other Icon parts to extract maximum performance out of the vehicle. Stage 1 system is comprised of adjustable 2.5" diameter, 7-9" lift remote reservoir coilover shocks, Icons bolt in coilover conversion hoops, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bumpstop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs with U-bolts and 2.0 aluminum series remote reservoir rear shocks.

Features

• Adjustable coilovers allow for adjustments from 7"-9" in additional ride height
• Front external reservoir delivers excellent heat dissipation
• Dual rate spring for a great ride quality on or off road
• Adjustable, extreme duty track bar can be adjusted on truck
• Radius arm drops lower factory arms to allow for a full range of motion
• Nitrogen charged 2.0 remote reservoir rear shocks feature 5/8" polished nitro steel shaft and 6061 aluminum rod ends

Specifications

• Max Tire Size: 35" x 12.50"
• Weight: 511 lb
