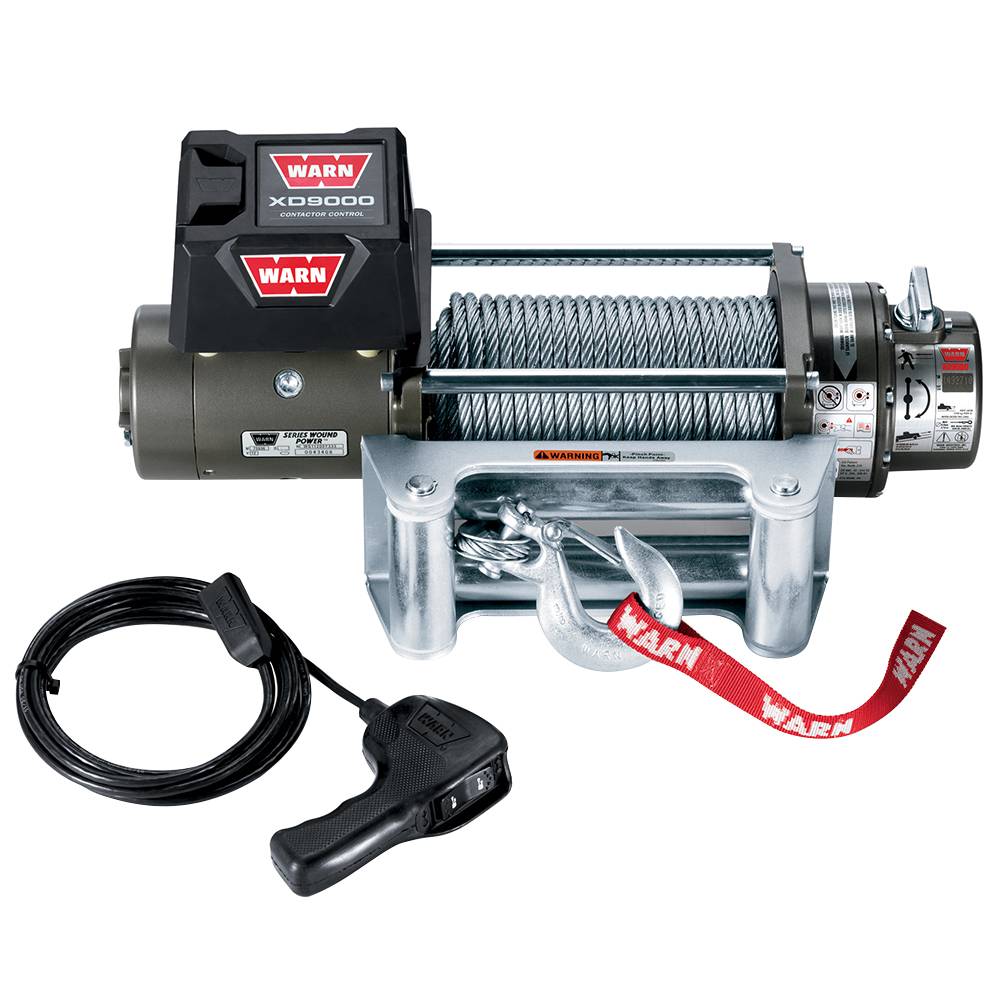

Warn 28500 XD9000 Self-Recovery Winch

As long-time favorites, you'll see more of these winches mounted on vehicles than any other. Quick no-load line speeds, durable and reliable 3-stage Planetary geartrains, and low current draw for long duty cycles have made these durable units staples of the Warn lineup for years. The XD9000 has a compact shape and separate control pack for easy and versatile mounting - even in tight spaces.

Features

• Low-profile design and separate control box allows for a wide range of mounting options
• Portable winch carrier installs on any 2” hitch receiver
• Exclusive brake design provides superior control while winching
• Durable 3-stage Planetary geartrain for smooth, reliable, operation
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Chip-resistant, powder-coated finish
• Remote control with 12 ft (3.7m) lead
• Durable 5/16 inch (8mm) diameter galvanized steel wire rope

Specifications

• Winch Style: Electric
• Pull Rating: 9,000 lb
• Volts: 12 volt
• Winch Fairlead Type: Roller
• Remote Included: Yes
• Remote: 12 ft Wired Remote
• Free-Spooling: Yes
• Brake: Yes
• Power Out: Yes
• Drive Gear: 3-stage Planetary
• Winch Line Included: Yes
• Winch Line Type: Cable
• Winch Line Diameter: 5/16 inch
• Winch Line Material: Steel
• Winch Line Length: 100 ft
• No Load Line Speed: 38 fpm
• Conforms to J706 Standards: No
• Mounting Hole Quantity: 4 holes
• Mounting Pattern Length: 10 inch
• Mounting Pattern Width: 4.5 inch
• Weight: 78 lb
• Motor Horsepower: 4.6 hp
• Gear Reduction Ratio: 156:1

Vehicle Fitment

This part is universal
